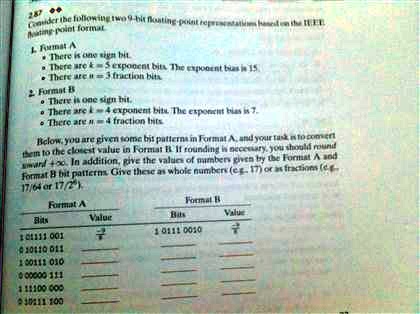

287
Consider the following two 9-bit floating-point representations based on the IEEE
floating point format
1. Format A
• There is one sign bit.
• There are $k=5$ exponent bits. The exponent bias is 15.
• There are $n=3$ fraction bits.
2. Format B
• There is one sign bit.
• There are $k=4$ exponent bits. The exponent bias is 7.
• There are $n=4$ fraction bits.
Below, you are given some bit patterns in Format A, and your task is to convert
them to the closest value in Format B. If rounding is necessary, you should round
upward to $+?$. In addition, give the values of numbers given by the Format A and
Format B bit patterns. Give these as whole numbers (e.g., 17) or as fractions (e.g.,
17/64 or 17/21).
Format A
Format B
Bits
Value
Bits
Value
1 01111 001
$ rac{7}{8}$
1 0111 0010
$ rac{7}{8}$
0 10110 011
1 00111 010
0 00000 111
1 11100 000
1 01111 100
