The quantity (1/2) epsi _(0)E^(2) has the significance of ........
(a) energy/volume
(b) energy/farad
(c) energy/volt
A wire with a length of 150m and a radius of 0.15mm carries a current with a uniform current density of 2.8 imes 10^(7)(A)/(m)2. The current is about
(a) 29.63A
(b) 2A
(c) 0.54A
A cable having radius 1mm in which 10A current pass. If 1m^(3) of the cable conducting material contains 5.8 imes 10^(28) free electrons. What is the drift velocity of electrons?
(a) 43.3(m)/(s)
(b) 0.343m(m)/(s)
(c) 2.6(m)/(s)
What is the radius of a copper wire needed for keeping the resistance at 0.4Omega , if the wire length is 20m. Assuming the resistivity at 20deg C is 1.68 imes 10^(-8)Omega .m ?
(a) 0.85mm
(b) 1.30mm
(c) 0.51mm
In the previous problem, if copper's temperature coefficient is 4.3 imes 10^(-3)K^(-1), what would be the value of the resistivity if the temperature is raised from 20deg C to 420 deg C ?
(a) 4.56 imes 10^(-8)Omega .m
(b) 7.53 imes 10^(-8)Omega .m
(c) 9.45 imes 10^(-8)Omega .m
A certain wire has resistance R. Another wire, of the same material, has half the length and half the diameter of the first wire. The resistance of the second wire is:
(a) (R)/(4)
(b) (R)/(2)
(c) 2R
A wire is 1m long and has cross-sectional area 1 imes 10^(-6)m^(2). When connected to a potential difference of 2V, a current of 4A exists in the wire. The resistivity of this wire is .........
(a) 5 imes 10^(-7)Omega *m
(b) 2 imes 10^(-6)Omega *m
(c) 4 imes 10^(-5)Omega *m
Physical Constants: e=1.6 imes 10^(-19)C;k=8.99 imes 10^(9)N*(m^(2))/(C^(2)) epsi _(0)=8.85 imes 1^()
-12(C^(2))/(N)*m^(2)

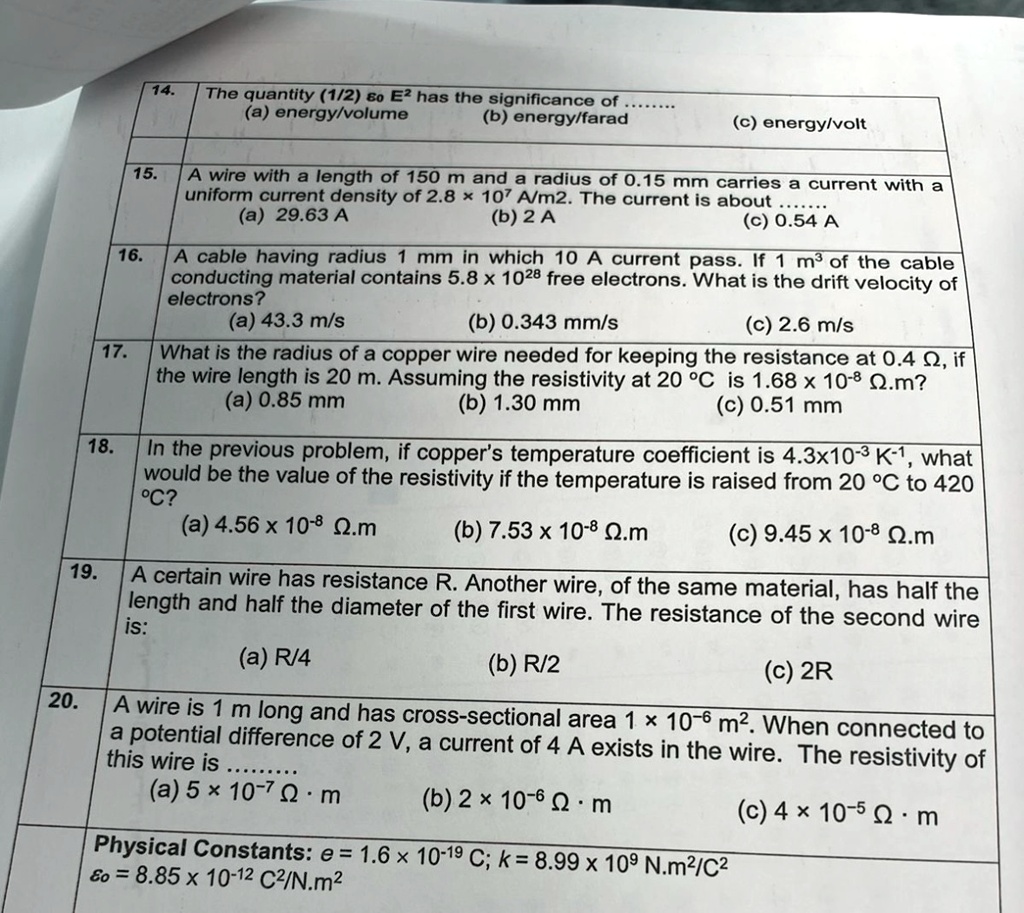

14.
The quantity(1/2)go E has the significance of .. (a)energy/volume (b)energy/farad
(c)energy/volt
15.
A wire with a length of 150 m and a radius of 0.15 mm carries a current with a uniform current density of 2.8 x 107 A/m2.The current is about ... a29.63A b2A c0.54A
16.
A cable having radius 1 mm in which 10 A current pass.If 1 m3 of the cable
electrons? a43.3m/s (b) 0.343 mm/s (c) 2.6 m/s What is the radius of a copper wire needed for keeping the resistance at O.4 ,if the wire length is 20 m.Assuming the resistivity at 20 C is 1.68 x 10-8 .m? a)0.85 mm (b) 1.30 mm c0.51 mm
17.
18.
In the previous problem, if copper's temperature coefficient is 4.3x10-3 K-1,what would be the value of the resistivity if the temperature is raised from 20 C to 420 C? a4.5610-.m (b7.5310-8Q.m (c)9.45 x 10-8 .m
19.
A certain wire has resistance R.Another wire,of the same material,has half the length and half the diameter of the first wire. The resistance of the second wire is: (a) R/4 (b) R/2 (c) 2R 20. A wire is 1 m long and has cross-sectional area 1 x 10- m2.When connected to a potential difference of 2 V,a current of 4 A exists in the wire. The resistivity of this wire is. a510-7m (b)2 10-6 m (c) 4 x 10-5 m Physical Constants: e=1.6 10-19 C;k=8.99x 109 N.m2/C2 =8.85x10-12C2/N.m2
