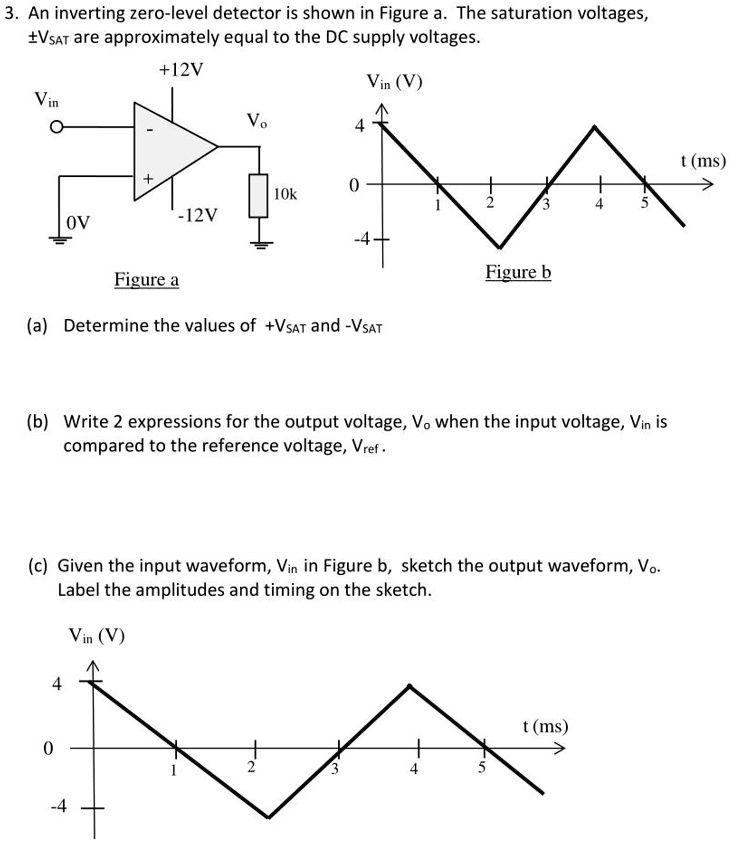

3. An inverting zero-level detector is shown in Figure a. The saturation voltages, \(\pm V_{SAT}\) are approximately equal to the DC supply voltages.
(a) Determine the values of \( +V_{SAT} \) and \( -V_{SAT} \)
(b) Write 2 expressions for the output voltage, \(V_o\) when the input voltage, \(V_{in}\) is compared to the reference voltage, \(V_{ref}\.
(c) Given the input waveform, \(V_{in}\) in Figure b, sketch the output waveform, \(V_o\). Label the amplitudes and timing on the sketch.
