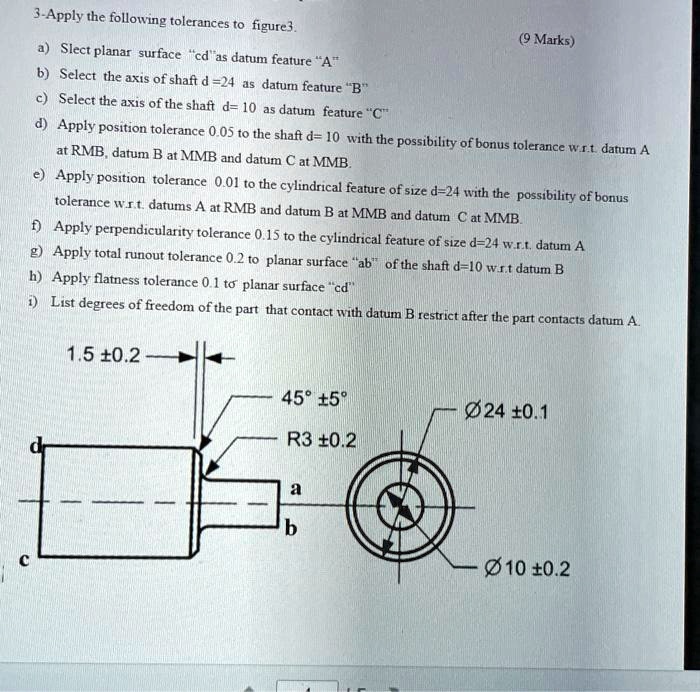

Apply the following tolerances to figure 3 (9 Marks):
a. Select planar surface cd as datum feature A.
b. Select the axis of shaft d=24 as datum feature B.
c. Select the axis of the shaft d=10 as datum feature C.
d. Apply position tolerance 0.05 to the shaft d=10 with the possibility of bonus tolerance with respect to datum A at RMB, datum B at MMB, and datum C at MMB.
e. Apply position tolerance 0.01 to the cylindrical feature of size d=24 with the possibility of bonus tolerance with respect to datums A at RMB, datum B at MMB, and datum C at MMB.
f. Apply perpendicularity tolerance 0.15 to the cylindrical feature of size d=24 with respect to datum A.
g. Apply total runout tolerance 0.2 to planar surface ab of the shaft d=10 with respect to datum B.
h. Apply flatness tolerance 0.1 to planar surface cd.
i. List the degrees of freedom of the part that contacts datum B after the part contacts datum A: 1.5, 0.2, 45, 240.1, R30.2, a, 100.2.
