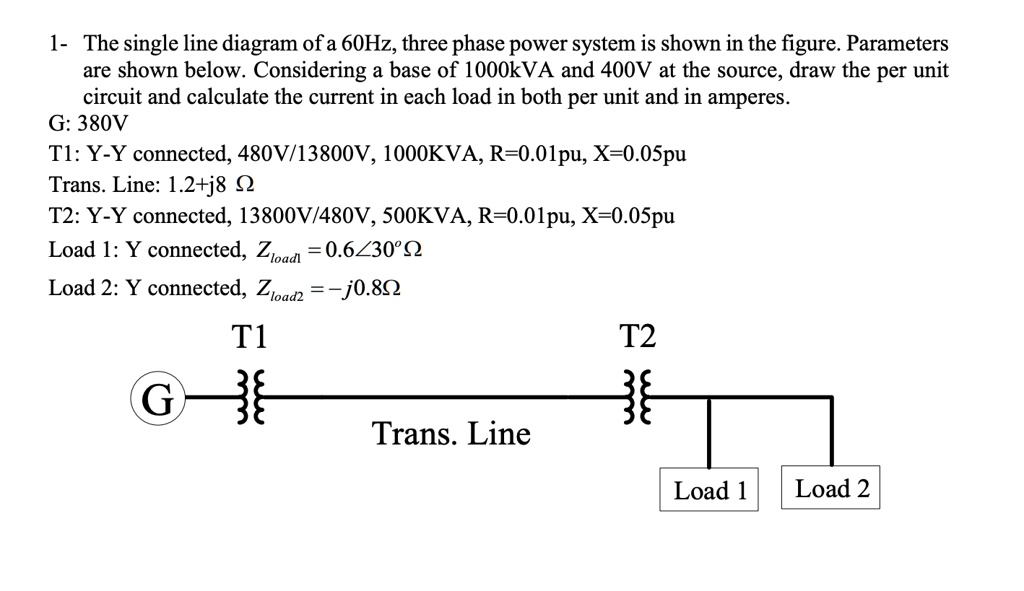

1- The single line diagram of a 60Hz, three phase power system is shown in the figure. Parameters
are shown below. Considering a base of 1000kVA and 400V at the source, draw the per unit
circuit and calculate the current in each load in both per unit and in amperes.
G: 380V
T1: Y-Y connected, 480V/13800V, 1000KVA, R=0.01pu, X=0.05pu
Trans. Line: 1.2+j8 ?
T2: Y-Y connected, 13800V/480V, 500KVA, R=0.01pu, X=0.05pu
Load 1: Y connected, $Z_{load1} = 0.6\angle30^\circ \Omega$
Load 2: Y connected, $Z_{load2} = -j0.8 \Omega$
