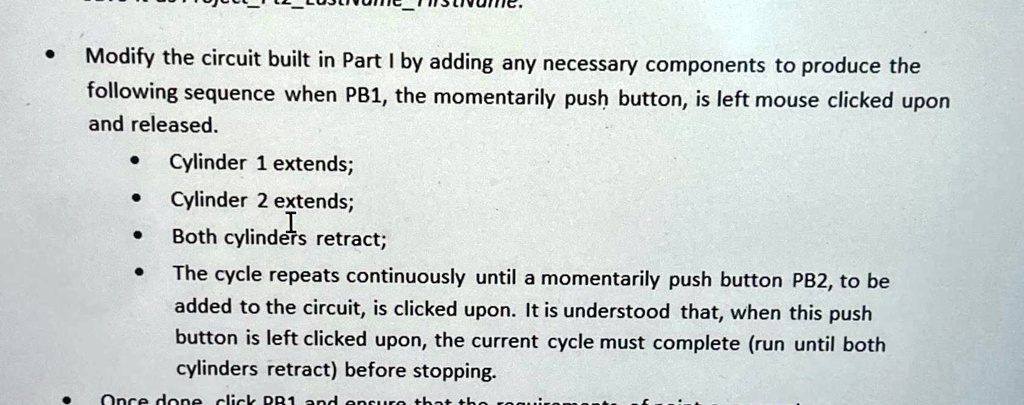

• Modify the circuit built in Part I by adding any necessary components to produce the
following sequence when PB1, the momentarily push button, is left mouse clicked upon
and released.
• Cylinder 1 extends;
• Cylinder 2 extends;
• Both cylinders retract;
• The cycle repeats continuously until a momentarily push button PB2, to be
added to the circuit, is clicked upon. It is understood that, when this push
button is left clicked upon, the current cycle must complete (run until both
cylinders retract) before stopping.
Once done click RB1 and ensure that th
