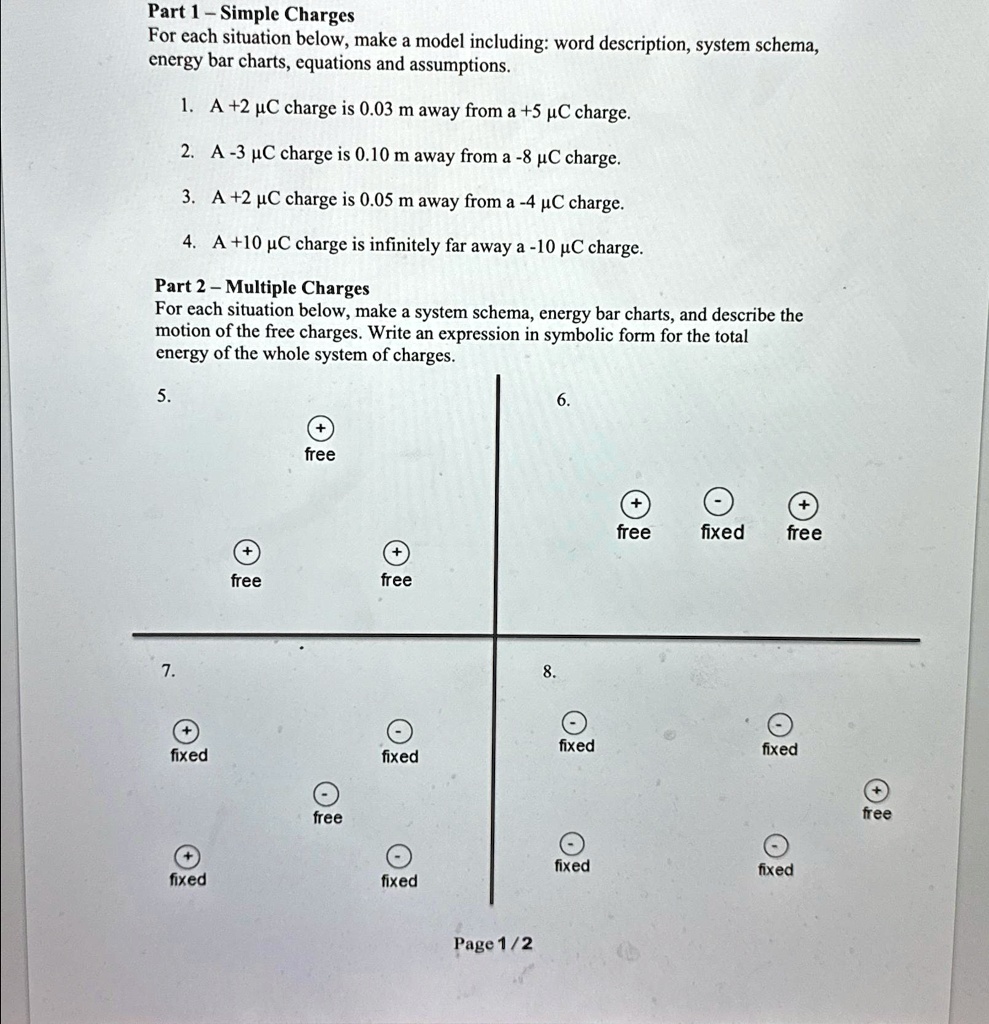

Part 1 - Simple Charges
For each situation below, make a model including: word description, system schema,
energy bar charts, equations and assumptions.
1. A +2 µC charge is 0.03 m away from a +5 µC charge.
2. A -3 µC charge is 0.10 m away from a -8 µC charge.
3. A +2 µC charge is 0.05 m away from a -4 µC charge.
4. A +10 µC charge is infinitely far away a -10 µC charge.
Part 2 - Multiple Charges
For each situation below, make a system schema, energy bar charts, and describe the
motion of the free charges. Write an expression in symbolic form for the total
energy of the whole system of charges.
5.
6.
7.
fixed
fixed
free
+ free fixed
+ free
+ free
free
free
8.
fixed
? fixed
fixed
fixed
fixed
Page 1/2
fixed
fixed
+ free
