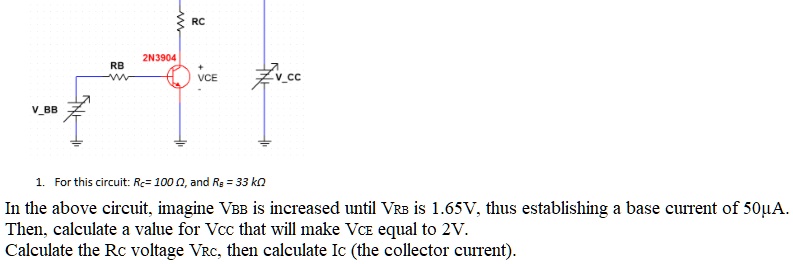

1. For this circuit: Rc= 100 ?, and R<sub>B</sub> = 33 k?
In the above circuit, imagine V<sub>BB</sub> is increased until V<sub>RB</sub> is 1.65V, thus establishing a base current of 50µA.
Then, calculate a value for V<sub>CC</sub> that will make V<sub>CE</sub> equal to 2V.
Calculate the R<sub>C</sub> voltage V<sub>RC</sub>, then calculate I<sub>C</sub> (the collector current).
