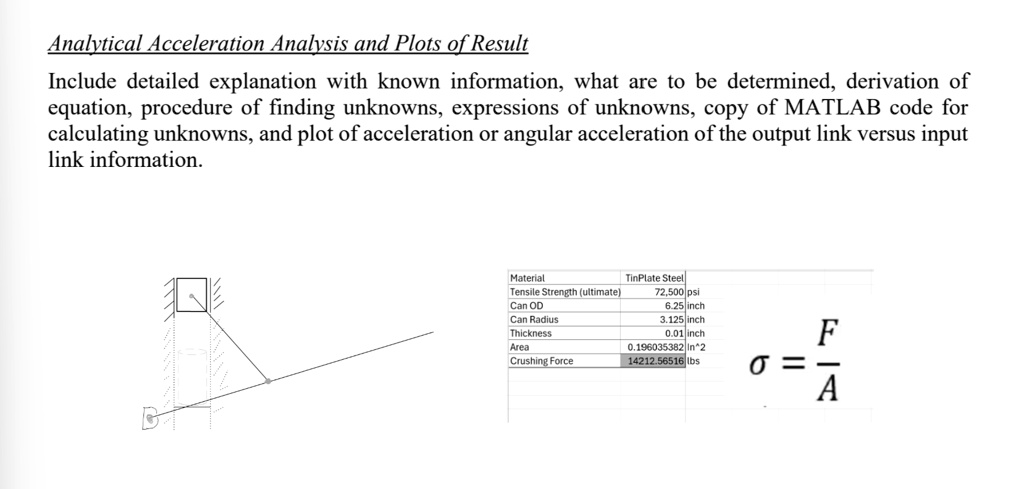

Analytical Acceleration Analysis and Plots of Result
Include detailed explanation with known information, what are to be determined, derivation of
equation, procedure of finding unknowns, expressions of unknowns, copy of MATLAB code for
calculating unknowns, and plot of acceleration or angular acceleration of the output link versus input
link information.
Material TinPlate Steel
Tensile Strength (ultimate) 72,500 psi
Can OD 6.25 inch
Can Radius 3.125 inch
Thickness 0.01 inch
Area 0.196035382 In^2
Crushing Force 14212.56516 lbs
$ \sigma = \frac{F}{A} $
