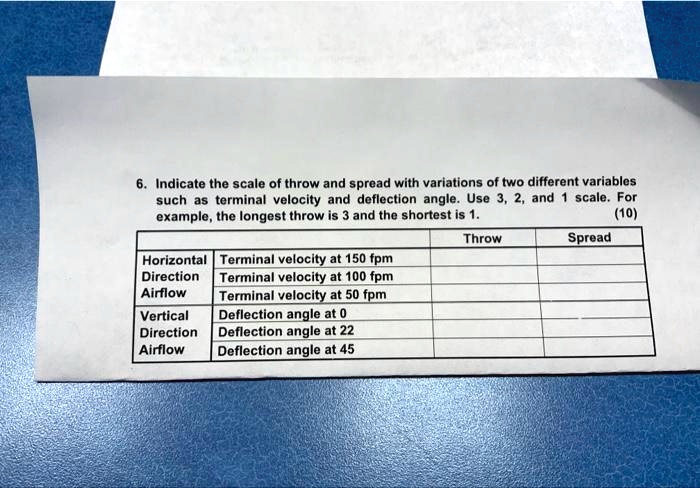

6. Indicate the scale of throw and spread with variations of two different variables
such as terminal velocity and deflection angle. Use 3, 2, and 1 scale. For
example, the longest throw is 3 and the shortest is 1.
(10)
Throw Spread
Horizontal Terminal velocity at 150 fpm
Direction Terminal velocity at 100 fpm
Airflow Terminal velocity at 50 fpm
Vertical Deflection angle at 0
Direction Deflection angle at 22
Airflow Deflection angle at 45
