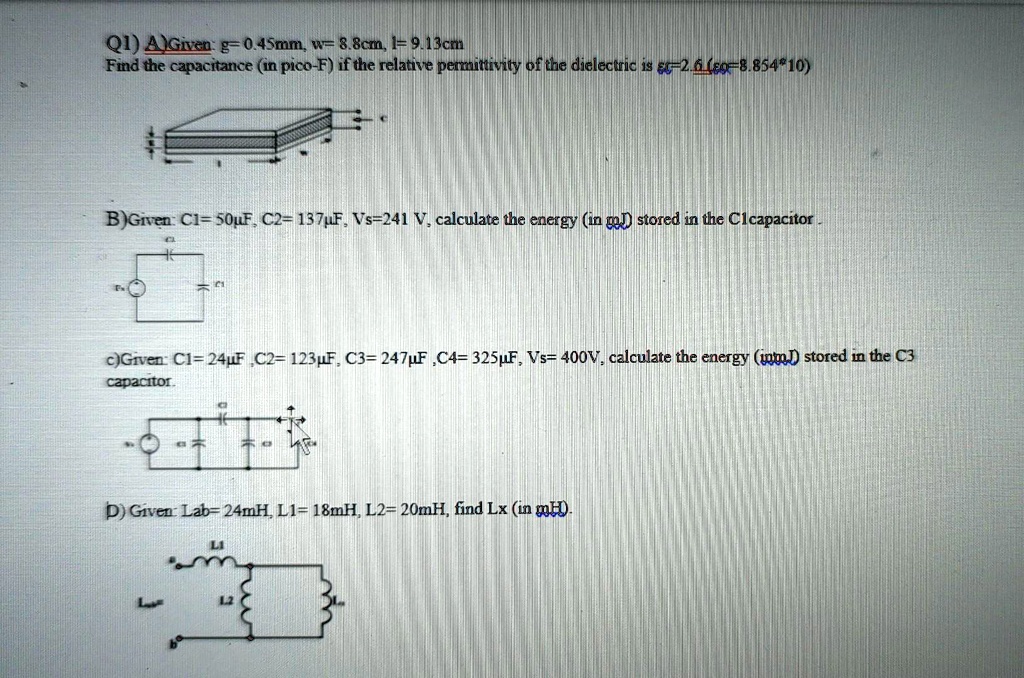

Given: g = 0.45 mm, w = 3.8 cm, l = 9.13 cm. Find the capacitance in pico-Farads if the relative permittivity of the dielectric is εr = 2. (ε0 = 8.854 × 10^-12 F/m)
Given: C1 = 50 μF, C2 = 137 F, Vs = 241 V. Calculate the energy stored in the C1 capacitor.
Given: C1 = 24 F, C2 = 123 F, C3 = 247 F, C4 = 325 F, Vs = 400 V. Calculate the energy stored in the C3 capacitor.
Given: Lab = 24 mH, L1 = 18 mH, L2 = 20 mH. Find Lx in mH.
