Problem 3

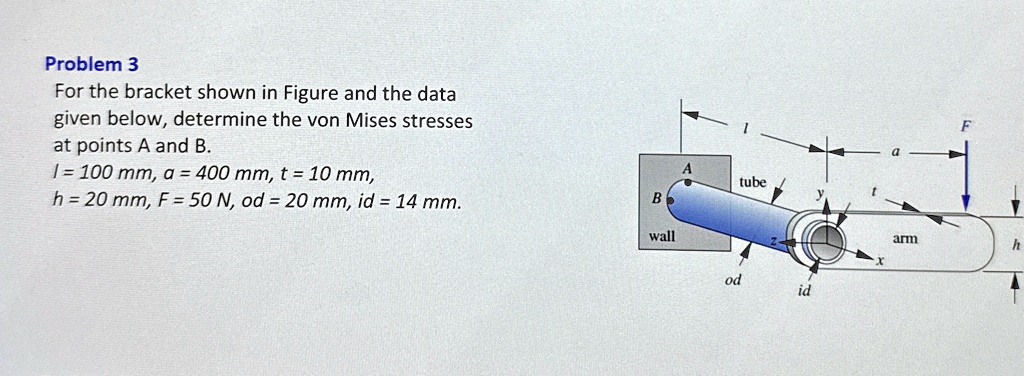

For the bracket shown in Figure and the data
given below, determine the von Mises stresses
at points A and B.
$l = 100 \text{ mm}, a = 400 \text{ mm}, t = 10 \text{ mm}$,
$h = 20 \text{ mm}, F = 50 \text{ N}, od = 20 \text{ mm}, id = 14 \text{ mm}$.
