Vcc
R1
Rc
C2
-V?
c
C1
B
Vi
VB
E
Z
R2
RE
Zo
C3

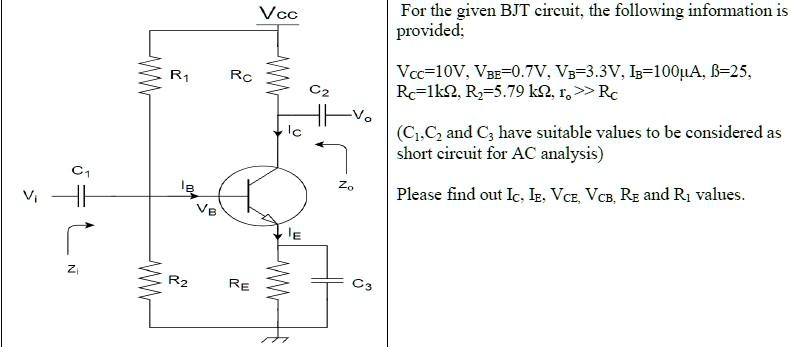

For the given BJT circuit, the following information is
provided;
VCC=10V, VBE=0.7V, VB=3.3V, IB=100?A, ?=25,
Rc=1k?, R2=5.79 k?, r. >> Rc
(C1,C2 and C3 have suitable values to be considered as
short circuit for AC analysis)
Please find out IC, IE, VCE, VCB, RE and R? values.
