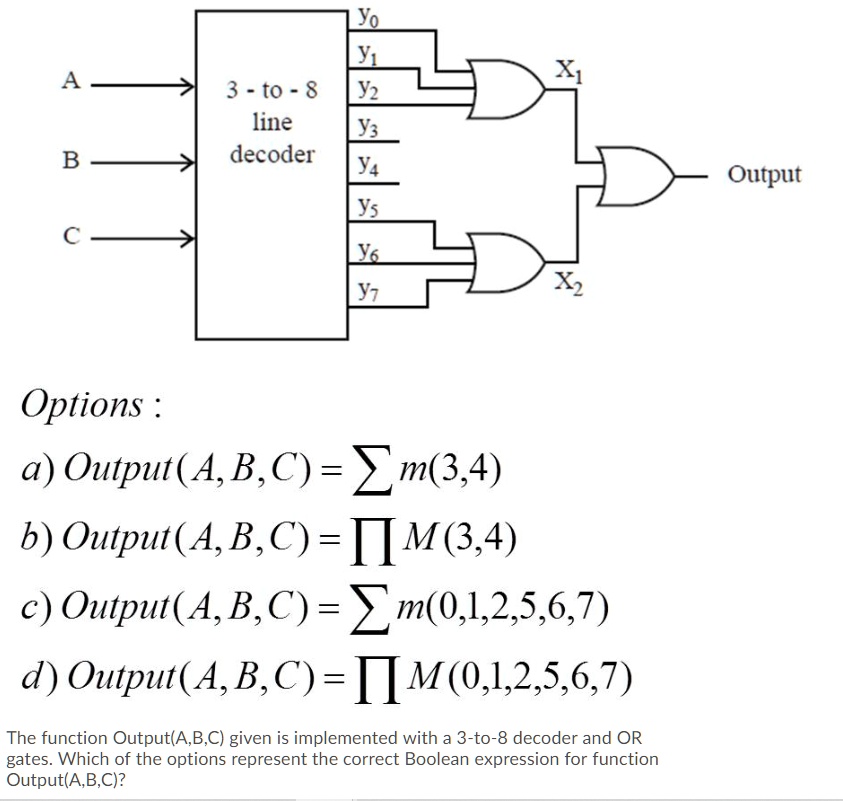

Yo
Y1
A
X1
3 - to - 8
Y2
line
Y3
B
decoder
Y4
Y5
C
Y6
Y7
X2
Options:
a) Output(A, B, C) = ?m(3,4)
b) Output(A, B, C) = ?M(3,4)
c) Output(A, B, C) = ?m(0,1,2,5,6,7)
d) Output(A, B, C) = ?M(0,1,2,5,6,7)
The function Output(A,B,C) given is implemented with a 3-to-8 decoder and OR
gates. Which of the options represent the correct Boolean expression for function
Output(A,B,C)?
Output
