Tutorial 1
E
D
Q XS - 66q

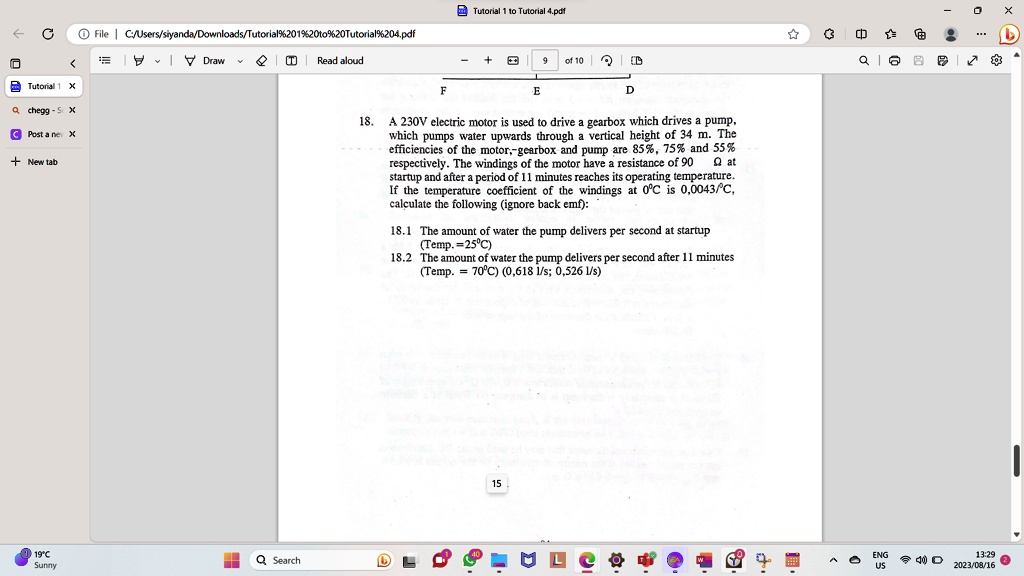

18. A 230V electric motor is used to drive a gearbox which drives a pump, which pumps water upwards through a vertical height of 34 m. The efficiencies of the motor, gearbox, and pump are 85%, 75%, and 55% respectively. The windings of the motor have a resistance of 90 Ω at startup and after a period of 11 minutes reaches its operating temperature. If the temperature coefficient of the windings at 0°C is 0.0043/°C, calculate the following (ignore back emf):
Post a ner
New tab
18.1 The amount of water the pump delivers per second at startup (Temp. = 25°C)
18.2 The amount of water the pump delivers per second after 11 minutes (Temp. = 70°C)
(0.6181/s; 0.5261/s)
