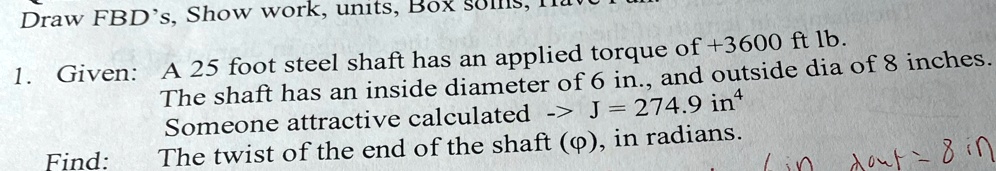

Draw FBD's, Show work, units,
Given: A 25 foot steel shaft has an applied torque of +3600ftlb.
The shaft has an inside diameter of 6 in., and outside dia of 8 inches. Someone attractive calculated ->J=274.9 in ^(4)
Find: The twist of the end of the shaft (phi ), in radians.
Draw FBD's,Show work,units,
1.52
Someone attractive calculated -> J = 274.9 in4 Find: The twist of the end of the shaft (), in radians.
