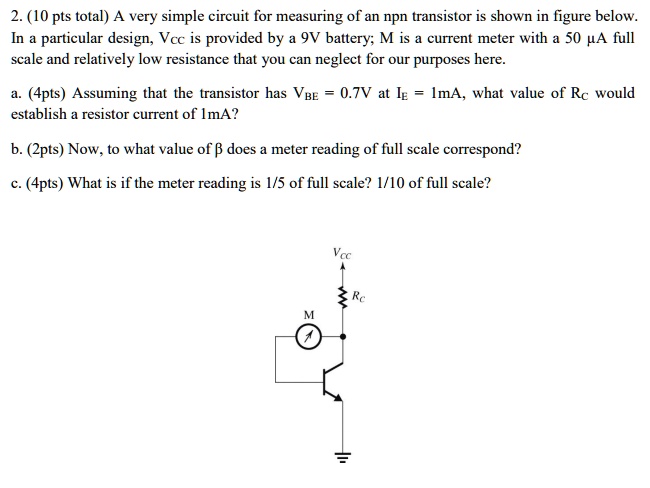

2. (10 pts total) A very simple circuit for measuring of an npn transistor is shown in figure below.
In a particular design, $V_{cc}$ is provided by a 9V battery; M is a current meter with a 50 µA full
scale and relatively low resistance that you can neglect for our purposes here.
a. (4pts) Assuming that the transistor has $V_{BE}$ = 0.7V at $I_E$ = 1mA, what value of $R_C$ would
establish a resistor current of 1mA?
b. (2pts) Now, to what value of $\beta$ does a meter reading of full scale correspond?
c. (4pts) What is if the meter reading is 1/5 of full scale? 1/10 of full scale?
