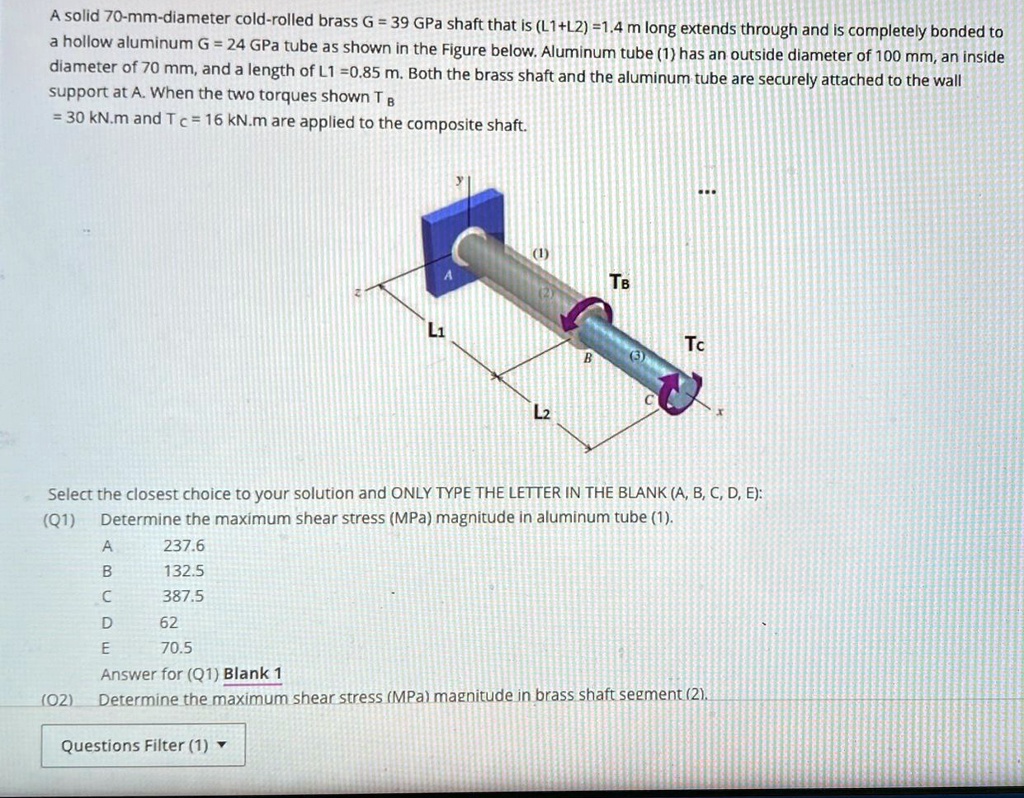

A solid 70-mm-diameter cold-rolled brass G = 39 GPa shaft that is (L1+L2) =1.4 m long extends through and is completely bonded to
a hollow aluminum G = 24 GPa tube as shown in the Figure below. Aluminum tube (1) has an outside diameter of 100 mm, an inside
diameter of 70 mm, and a length of L1 =0.85 m. Both the brass shaft and the aluminum tube are securely attached to the wall
support at A. When the two torques shown T<sub>B</sub>
= 30 kN.m and T<sub>c</sub> = 16 kN.m are applied to the composite shaft.
Select the closest choice to your solution and ONLY TYPE THE LETTER IN THE BLANK (A, B, C, D, E):
(Q1)
Determine the maximum shear stress (MPa) magnitude in aluminum tube (1).
A
237.6
B
132.5
C
387.5
D
62
E
70.5
Answer for (Q1) Blank 1
(02)
Determine the maximum shear stress (MPa) magnitude in brass shaft segment (2).
Questions Filter (1) ?
