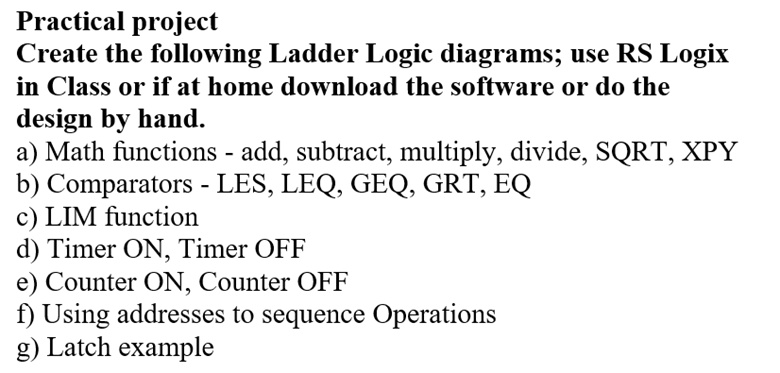

Practical project
Create the following Ladder Logic diagrams; use RS Logix
in Class or if at home download the software or do the
design by hand.
a) Math functions - add, subtract, multiply, divide, SQRT, XPY
b) Comparators - LES, LEQ, GEQ, GRT, EQ
c) LIM function
d) Timer ON, Timer OFF
e) Counter ON, Counter OFF
f) Using addresses to sequence Operations
g) Latch example
