If record 3 corresponds to the end of the linearly elastic region and record 5 corresponds to fracture point, carry out the following:
a. Draw the tensile stress-strain diagram for the bone specimen. (5 marks)
b. Calculate the elastic modulus, E, of the bone specimen. (2 marks)
c. What is the ultimate strength of the bone specimen? (1 marks)
d. What is the yield strength of the bone specimen? (1 marks)
e. What is the fracture's strain of the bone specimen? (1 marks)

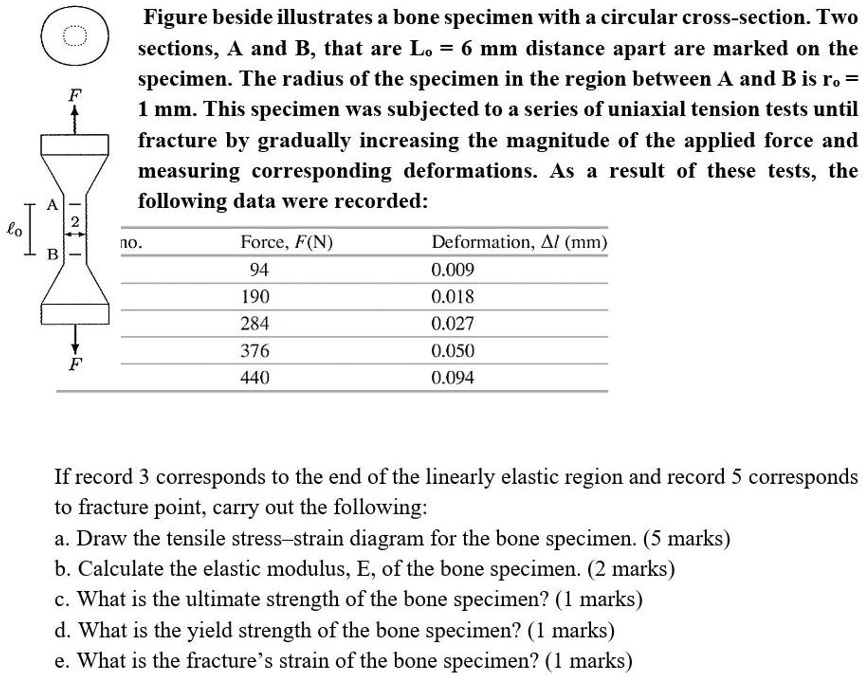

Figure beside illustrates a bone specimen with a circular cross-section.Two
sections. A and B.that are Lo =6 mm distance apart are marked on the
specimen.The radius of the specimen in the region between A and B is r.= 1 mm.This specimen was subjected to a series of uniaxial tension tests until
F
fracture by gradually increasing the magnitude of the applied force and measuring corresponding deformations. As a result of these tests, the following data were recorded:
no.
Force,F(N) 94 190 284 376 440
Deformation,/mm) 0.009 0.018 0.027 0.050 0.094
If record 3 corresponds to the end of the linearly elastic region and record 5 corresponds to fracture point,carry out the following: a. Draw the tensile stress-strain diagram for the bone specimen.(5 marks b.Calculate the elastic modulus,E,of the bone specimen.2 marks c.What is the ultimate strength of the bone specimen?(1 marks) d. What is the yield strength of the bone specimen?(1 marks e.What is the fracture's strain of the bone specimen?(1 marks
