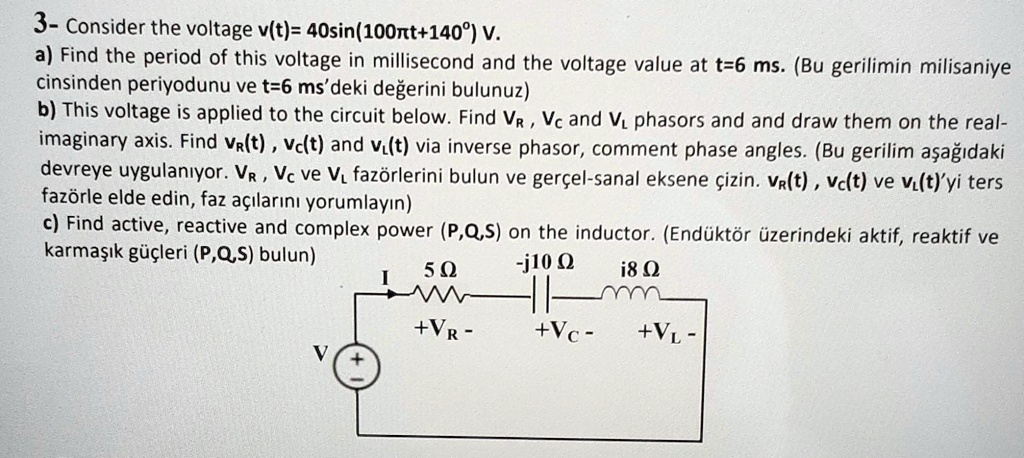

3- Consider the voltage $v(t) = 40sin(100\pi t + 140^\circ)$ V.
a) Find the period of this voltage in millisecond and the voltage value at $t = 6$ ms. (Bu gerilimin milisaniye
cinsinden periyodunu ve $t = 6$ ms'deki de?erini bulunuz)
b) This voltage is applied to the circuit below. Find $V_R$, $V_C$ and $V_L$ phasors and and draw them on the real-
imaginary axis. Find $V_R(t)$, $V_C(t)$ and $V_L(t)$ via inverse phasor, comment phase angles. (Bu gerilim a?a??daki
devreye uygulan?yor. $V_R$, $V_C$ ve $V_L$ fazörlerini bulun ve gerçel-sanal eksene çizin. $V_R(t)$, $V_C(t)$ ve $V_L(t)$'yi ters
fazörle elde edin, faz aç?lar?n? yorumlay?n)
c) Find active, reactive and complex power ($P, Q, S$) on the inductor. (Endüktör üzerindeki aktif, reaktif ve
karma??k güçleri ($P, Q, S$) bulun)
