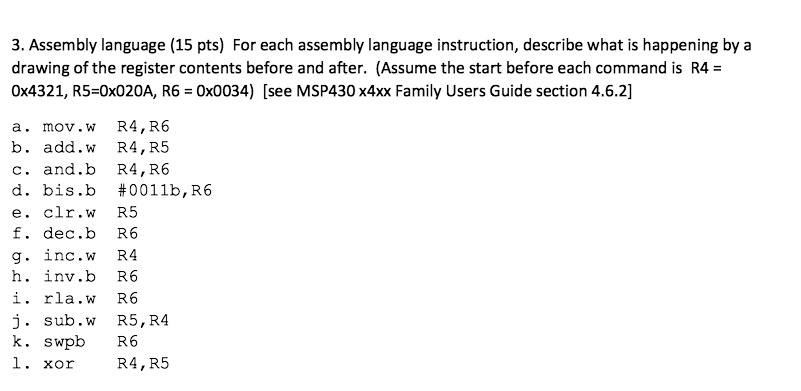

3. Assembly language (15 pts) For each assembly language instruction, describe what is happening by a
drawing of the register contents before and after. (Assume the start before each command is R4 =
0x4321, R5=0x020A, R6 = 0x0034) [see MSP430 x4xx Family Users Guide section 4.6.2]
a. mov.w R4, R6
b. add.w R4, R5
c. and.b R4,R6
d. bis.b #0011b, R6
e. clr.w R5
f. dec.b R6
g. inc.w R4
h. inv.b R6
i. rla.w R6
j. sub.w R5,R4
k. swpb R6
l. xor R4, R5
