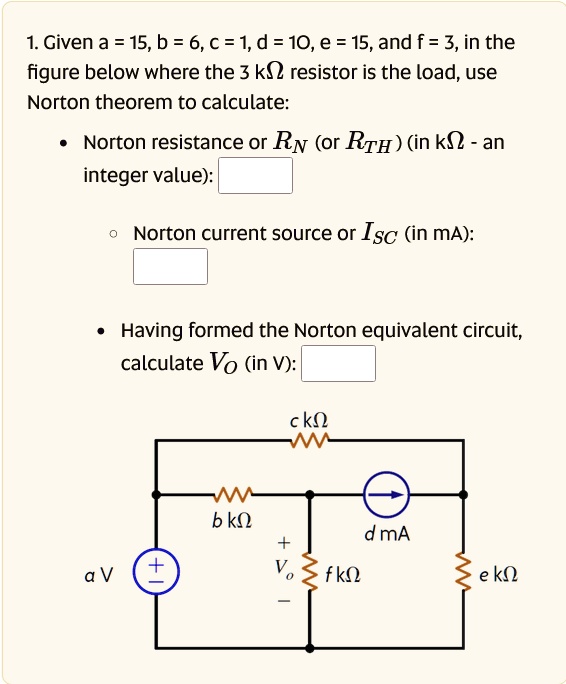

1. Given a = 15, b = 6, c = 1, d = 10, e = 15, and f = 3, in the
figure below where the 3 $k\Omega$ resistor is the load, use
Norton theorem to calculate:
• Norton resistance or $R_N$ (or $R_{TH}$) (in $k\Omega$ - an
integer value):
• Norton current source or $I_{SC}$ (in mA):
• Having formed the Norton equivalent circuit,
calculate $V_o$ (in V):
