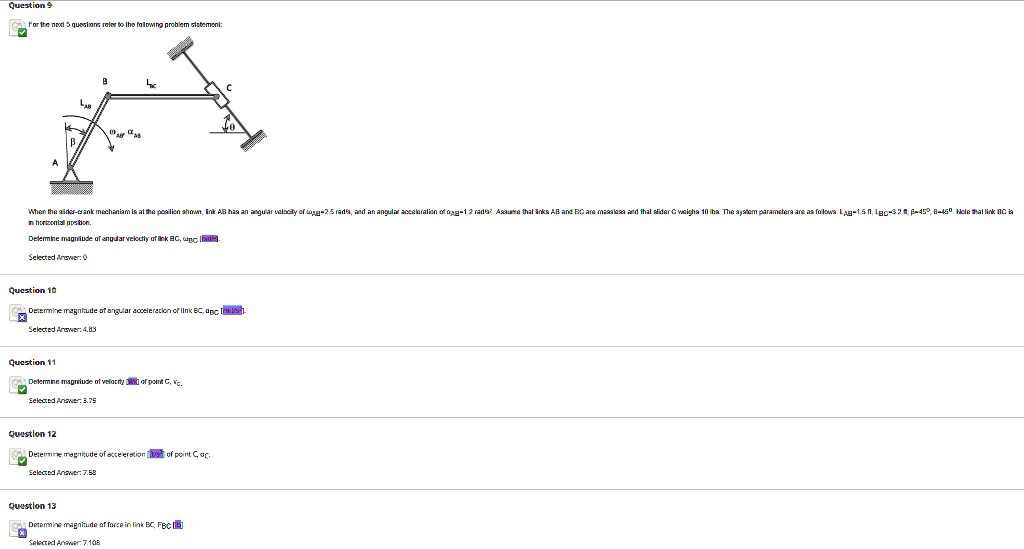

Question 9
For the next 5 questions refer to the following problem statement:
When the slider-crank mechanism is at the position shown, link AB has an angular velocity of \(\omega_{AB} = 2.5\) rad/s, and an angular acceleration of \(\alpha_{AB} = 12\) rad/s$^2$. Assume that links AB and BC are massless and that slider C weighs 10 lbs. The system parameters are as follows: \(L_{AB} = 1.5\) ft, \(L_{BC} = 3\) ft, \(\beta = 45^\circ\), \(\theta = 45^\circ\). Note that link BC is in horizontal position.
Determine magnitude of angular velocity of link BC, \(\omega_{BC}\)
Selected Answer: 0
Question 10
Determine magnitude of angular acceleration of link BC, \(\alpha_{BC}\)
Selected Answer: 4.83
Question 11
Determine magnitude of velocity of point C, \(v_C\)
Selected Answer: 3.75
Question 12
Determine magnitude of acceleration of point C, \(a_C\)
Selected Answer: 7.58
Question 13
Determine magnitude of force in link BC, \(F_{BC}\)
Selected Answer: 7.108
