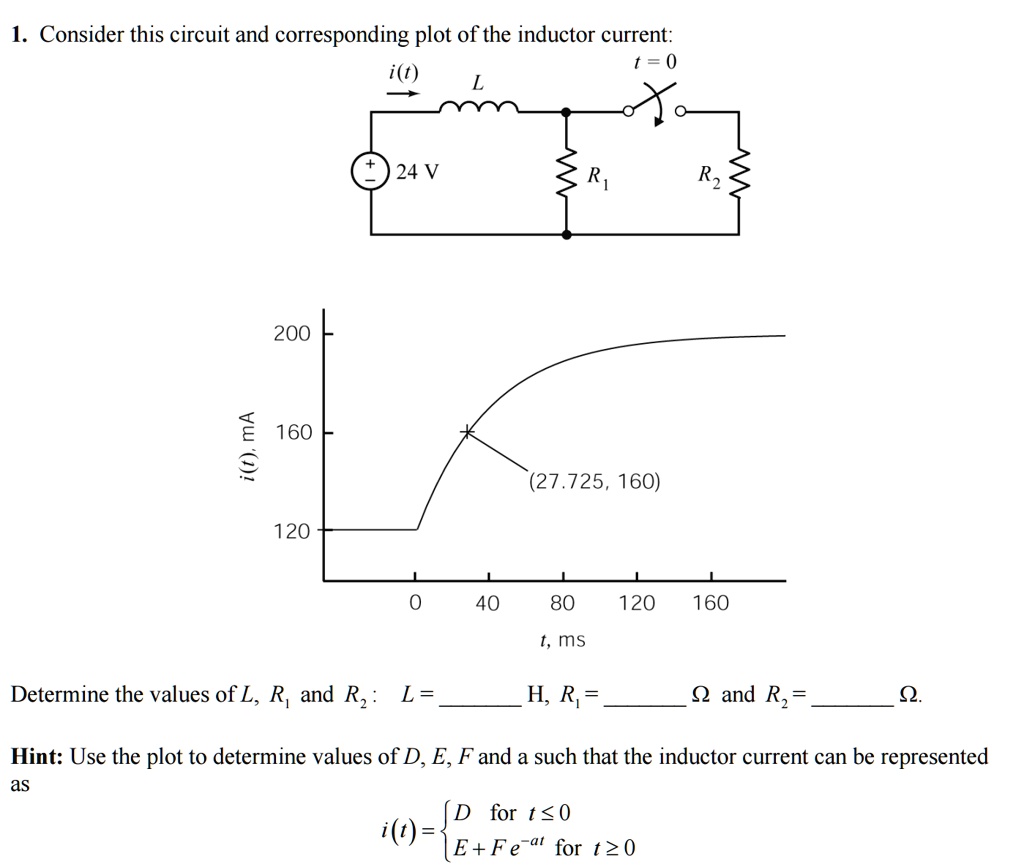

1. Consider this circuit and corresponding plot of the inductor current: t=0 i(t)
24 V
mA 160 i(t).
(27.725,160)
120
0
40
80
120
160
t, ms
Determine the values of L, R, and R, : L =
H,R,=
Q and R,=
9.
Hint: Use the plot to determine values of D, E, F and a such that the inductor current can be represented
as
D for t<0 E+F e-at for t0
