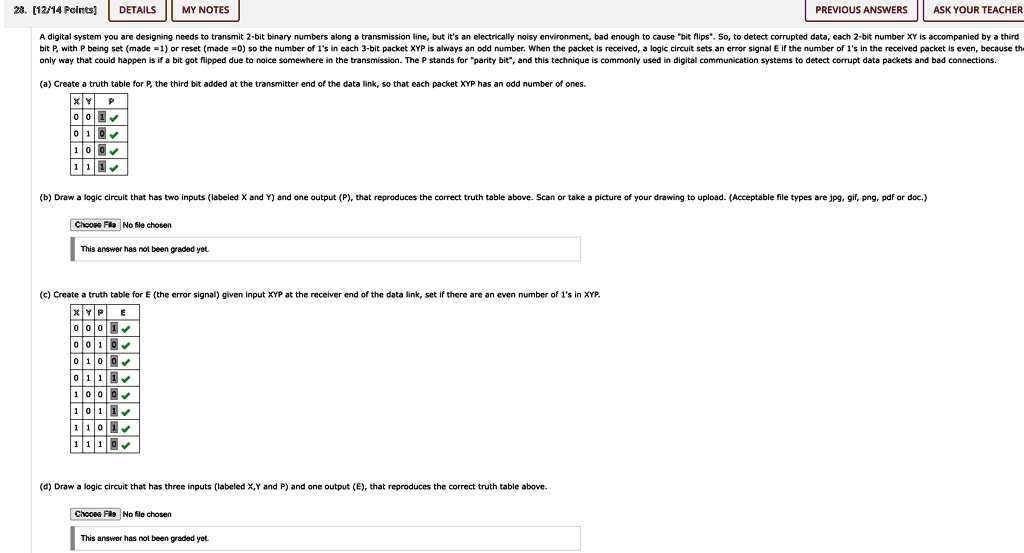

A digital system you are designing needs to transmit 2-bit binary numbers along a transmission line, but it's an electrically noisy environment, bad enough to cause "bit flips". So, to detect corrupted data, each 2-bit number XY is accompanied by a third
bit P, with P being set (made =1) or reset (made =0) so the number of 1's in each 3-bit packet XYP is always an odd number. When the packet is received, a logic circuit sets an error signal E if the number of 1's in the received packet is even, because the
only way that could happen is if a bit got flipped due to noice somewhere in the transmission. The P stands for "parity bit", and this technique is commonly used in digital communication systems to detect corrupt data packets and bad connections.
(a) Create a truth table for P, the third bit added at the transmitter end of the data link, so that each packet XYP has an odd number of ones.
XY P
0 0 1
0 1 0
1 0 0
1 1 1
(b) Draw a logic circuit that has two inputs (labeled X and Y) and one output (P), that reproduces the correct truth table above. Scan or take a picture of your drawing to upload. (Acceptable file types are jpg, gif, png, pdf or doc.)
Choose Fille No file chosen
This answer has not been graded yet.
(c) Create a truth table for E (the error signal) given input XYP at the receiver end of the data link, set if there are an even number of 1's in XYP.
XY P E
0 0 0 1
0 0 1 0
0 1 0 0
0 1 1 1
1 0 0 0
1 0 1 1
1 1 0 1
1 1 1 0
(d) Draw a logic circuit that has three inputs (labeled X,Y and P) and one output (E), that reproduces the correct truth table above.
Choces File No file chosen
This answer has not been graded yet.
