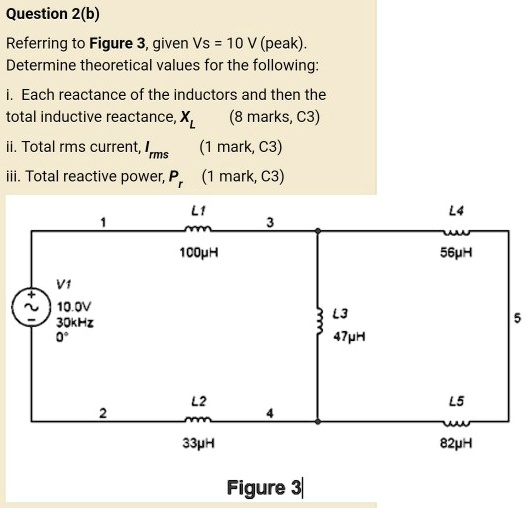

Question 2(b)
Referring to Figure 3, given Vs = 10 V (peak).
Determine theoretical values for the following:
i. Each reactance of the inductors and then the
total inductive reactance, $X_L$ (8 marks, C3)
ii. Total rms current, $I_{rms}$ (1 mark, C3)
iii. Total reactive power, $P_r$ (1 mark, C3)
