Link 3
Link 2
Offset
Slider position d
Use MATLAB to solve the following questions. =3ft=13ftOf/ser=0,r=r/2rg=r/2,=2000rpm=10rad/s W=1/b,W=21b,W=4lb,I=0.02/b.frsI=0.8/b.frsF=-1000-500lb Friction is negligible.

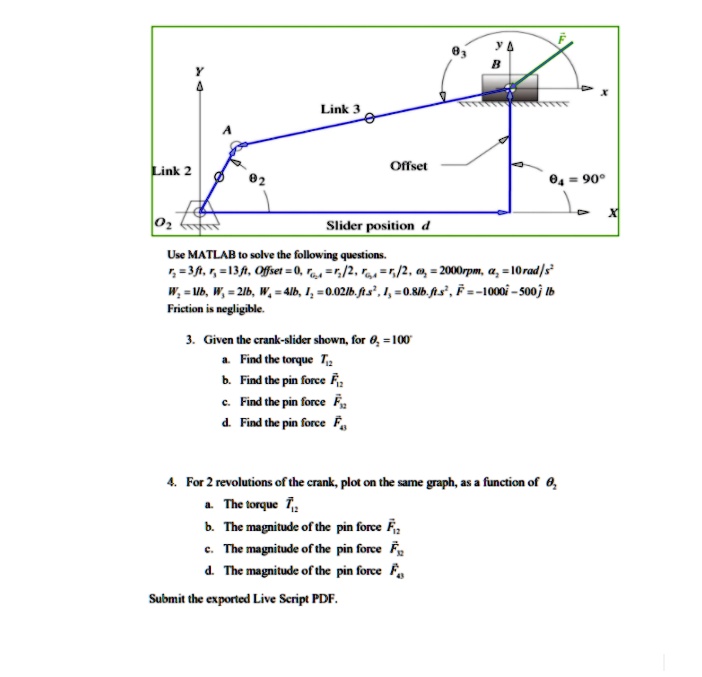

3. Given the crank-slider shown, for =100 a.Find the torque T b.Find the pin force F c.Find the pin force F d.Find the pin force F
4. For 2 revolutions of the crank, plot on the same graph, as a function of .The torque T b. The magnitude of the pin force F c. The magnitude of the pin force F d. The magnitude of the pin force F
Submit the exported Live Script PDF.
