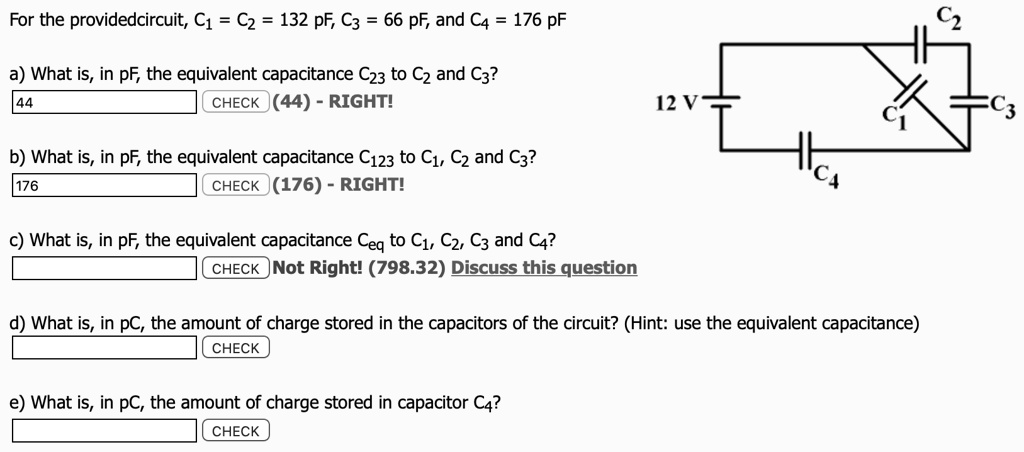

For the providedcircuit, C? = C? = 132 pF, C? = 66 pF, and C? = 176 pF
a) What is, in pF, the equivalent capacitance C?? to C? and C??
44
CHECK (44) - RIGHT!
b) What is, in pF, the equivalent capacitance C??? to C?, C? and C??
176
CHECK (176) - RIGHT!
c) What is, in pF, the equivalent capacitance C_{eq} to C?, C?, C? and C??
CHECK Not Right! (798.32) Discuss this question
d) What is, in pC, the amount of charge stored in the capacitors of the circuit? (Hint: use the equivalent capacitance)
CHECK
e) What is, in pC, the amount of charge stored in capacitor C??
CHECK
