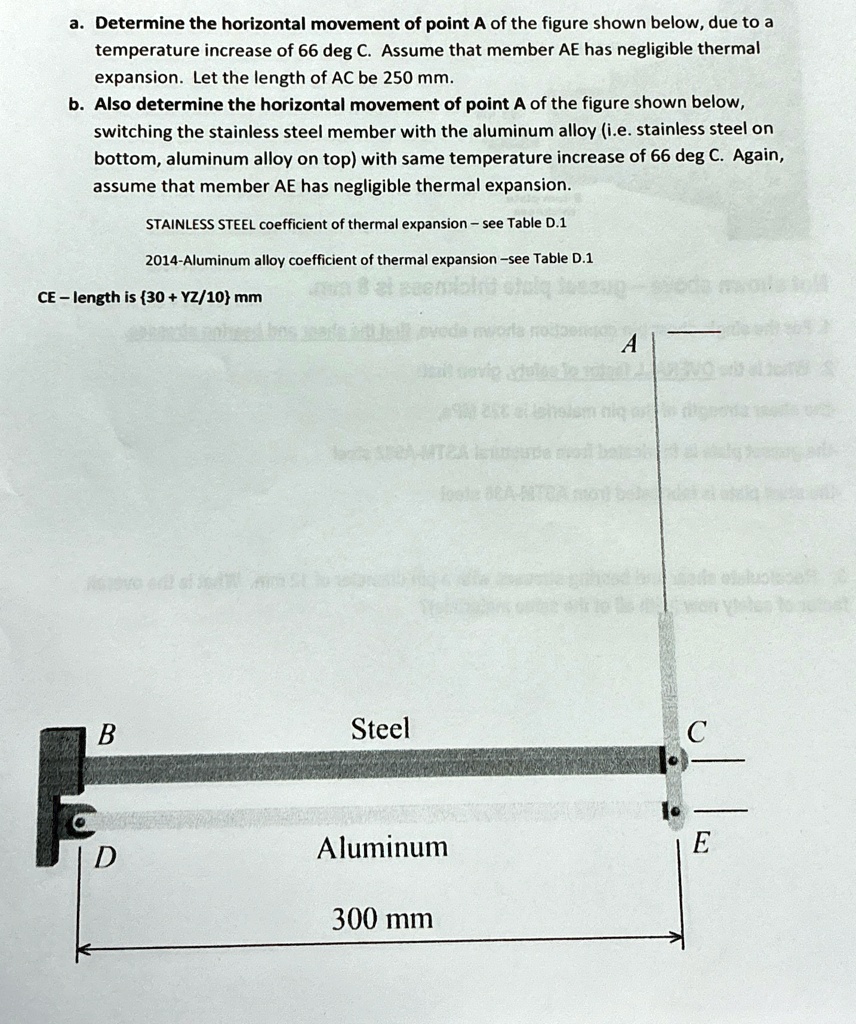

a. Determine the horizontal movement of point A of the figure shown below, due to a
temperature increase of 66 deg C. Assume that member AE has negligible thermal
expansion. Let the length of AC be 250 mm.
b. Also determine the horizontal movement of point A of the figure shown below,
switching the stainless steel member with the aluminum alloy (i.e. stainless steel on
bottom, aluminum alloy on top) with same temperature increase of 66 deg C. Again,
assume that member AE has negligible thermal expansion.
STAINLESS STEEL coefficient of thermal expansion - see Table D.1
2014-Aluminum alloy coefficient of thermal expansion -see Table D.1
CE - length is (30 + YZ/10) mm
