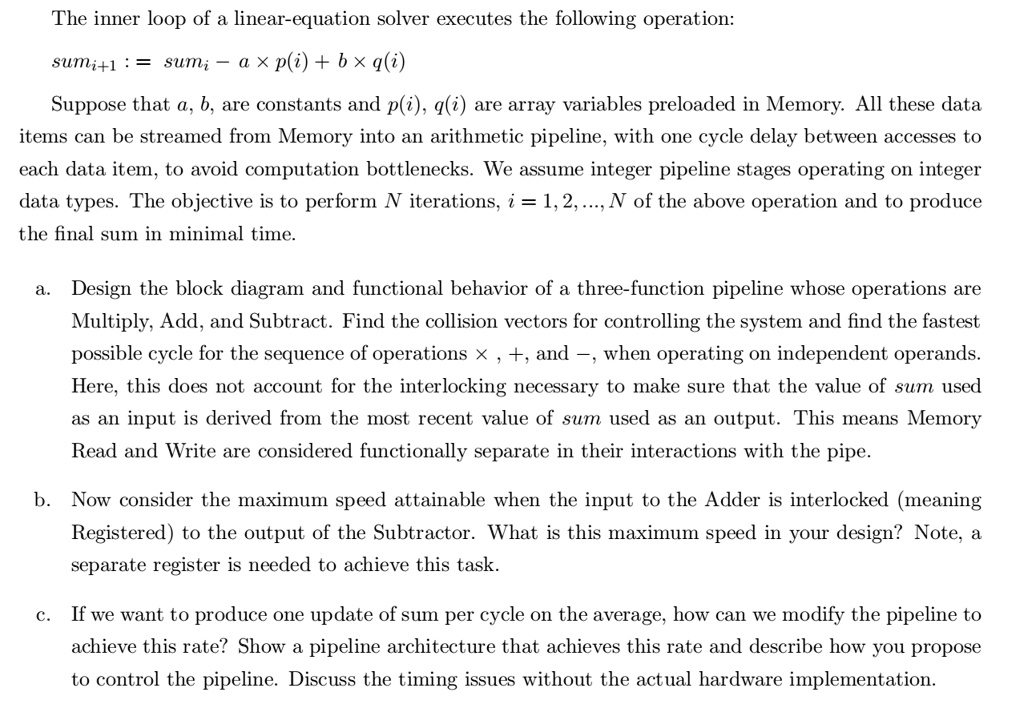

The inner loop of a linear-equation solver executes the following operation:
$\sum_{i+1} := \sum_i - a \times p(i) + b \times q(i)$
Suppose that a, b, are constants and p(i), q(i) are array variables preloaded in Memory. All these data
items can be streamed from Memory into an arithmetic pipeline, with one cycle delay between accesses to
each data item, to avoid computation bottlenecks. We assume integer pipeline stages operating on integer
data types. The objective is to perform N iterations, i = 1, 2, ..., N of the above operation and to produce
the final sum in minimal time.
a. Design the block diagram and functional behavior of a three-function pipeline whose operations are
Multiply, Add, and Subtract. Find the collision vectors for controlling the system and find the fastest
possible cycle for the sequence of operations x, +, and -, when operating on independent operands.
Here, this does not account for the interlocking necessary to make sure that the value of sum used
as an input is derived from the most recent value of sum used as an output. This means Memory
Read and Write are considered functionally separate in their interactions with the pipe.
b. Now consider the maximum speed attainable when the input to the Adder is interlocked (meaning
Registered) to the output of the Subtractor. What is this maximum speed in your design? Note, a
separate register is needed to achieve this task.
c. If we want to produce one update of sum per cycle on the average, how can we modify the pipeline to
achieve this rate? Show a pipeline architecture that achieves this rate and describe how you propose
to control the pipeline. Discuss the timing issues without the actual hardware implementation.
