Kirchhoff's Laws
Puntos:40

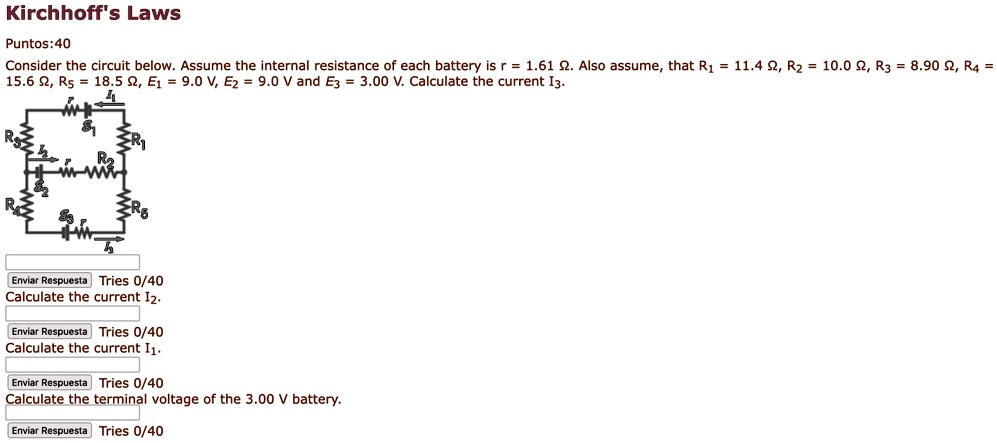

Consider the circuit below. Assume the internal resistance of each battery is r = 1.61 $\Omega$. Also assume, that $R_1$ = 11.4 $\Omega$, $R_2$ = 10.0 $\Omega$, $R_3$ = 8.90 $\Omega$, $R_4$ = 15.6 $\Omega$, $R_5$ = 18.5 $\Omega$, $E_1$ = 9.0 V, $E_2$ = 9.0 V and $E_3$ = 3.00 V. Calculate the current $I_3$.
Calculate the current $I_2$.
Calculate the current $I_1$.
Calculate the terminal voltage of the 3.00 V battery.
