1.
Award: 0 out of 10.00 points

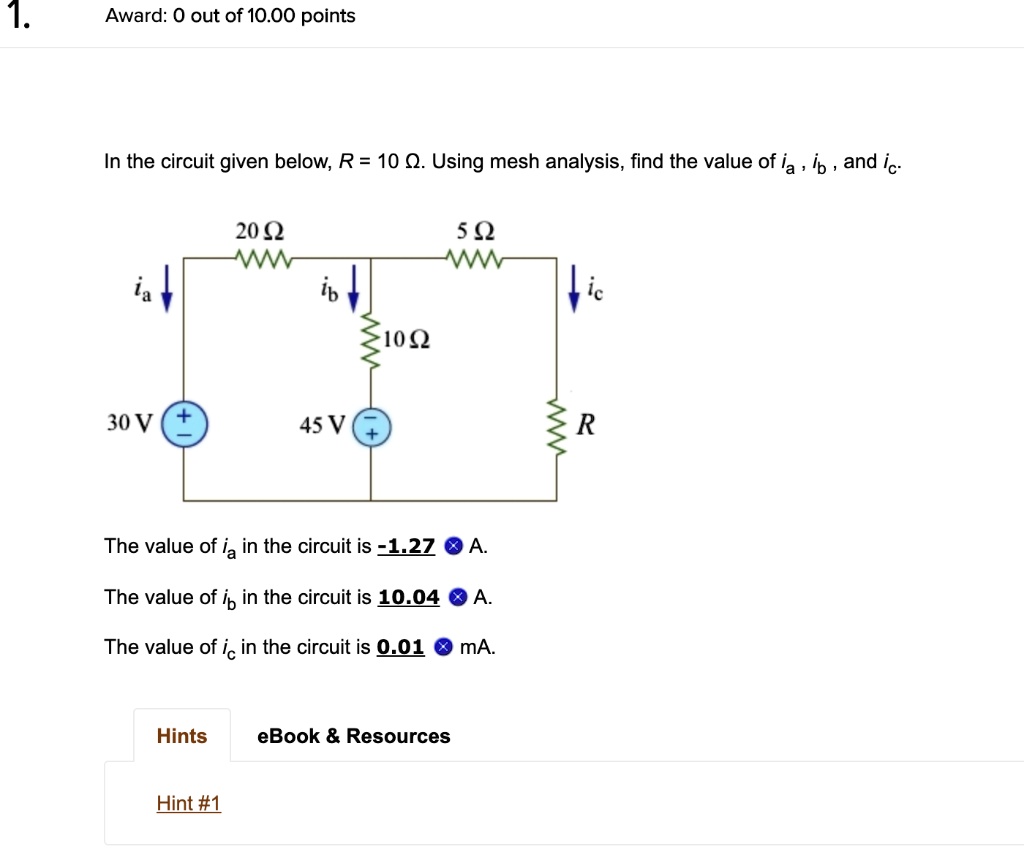

In the circuit given below, R = 10 ?. Using mesh analysis, find the value of $i_a$, $i_b$, and $i_c$.
20 ?
W
5 ?
WW
$i_a$
$i_b$
$i_c$
10 ?
30 V +
45 V +
R
+
The value of $i_a$ in the circuit is -1.27 A.
The value of $i_b$ in the circuit is 10.04 A.
The value of $i_c$ in the circuit is 0.01 mA.
