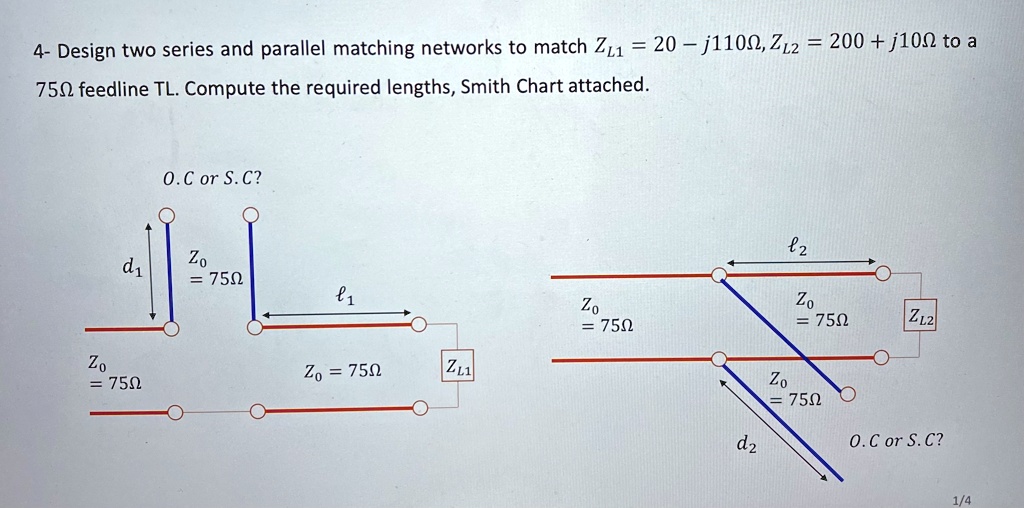

4- Design two series and parallel matching networks to match Z_(L1) = 20-j110Ω, Z_(L2) = 200+j10Ω to a 75Ω feedline TL. Compute the required lengths, Smith Chart attached.
4- Design two series and parallel matching networks to match Zu1 = 20 - j110, Zu2 = 200 + j10 to a 750 feedline TL. Compute the required lengths, Smith Chart attached.
O.C or S.C?
L2
d,
Zo = 75Ω
L1
Zo = 75Ω
Zo = 75Ω
Zo = 75Ω
Zo = 75Ω
Zo = 75Ω
d2
O.C or S.C?
1/4
