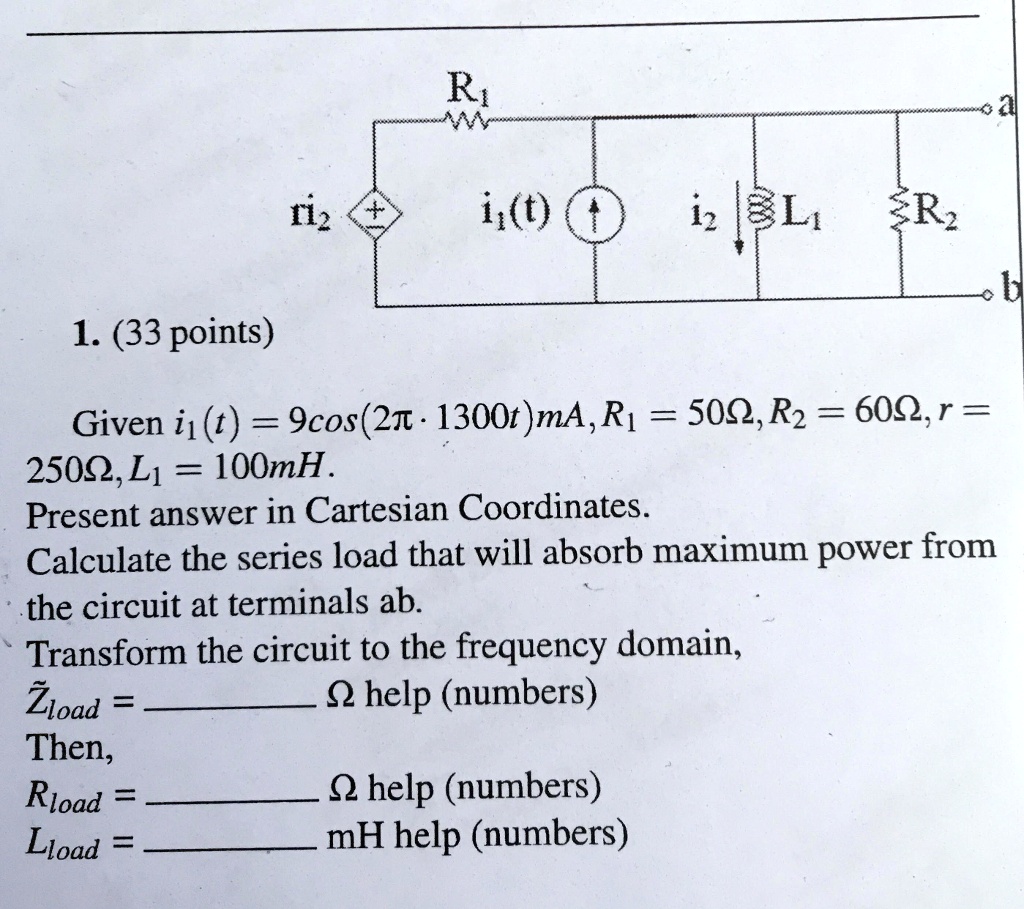

R1
a
ri?+
i(t)
i?L?R?
b
1. (33 points)
Given i? (t) = 9cos(2?· 1300t)mA, R? = 50?, R? = 60?, r =
250?, L? = 100mH.
Present answer in Cartesian Coordinates.
Calculate the series load that will absorb maximum power from
the circuit at terminals ab.
Transform the circuit to the frequency domain,
Zload = _______ ? help (numbers)
Then,
Rload = _______ ? help (numbers)
Lload = _______ mH help (numbers)
