Could you please fill in the chart and the answers thanks I would appreciate it!!

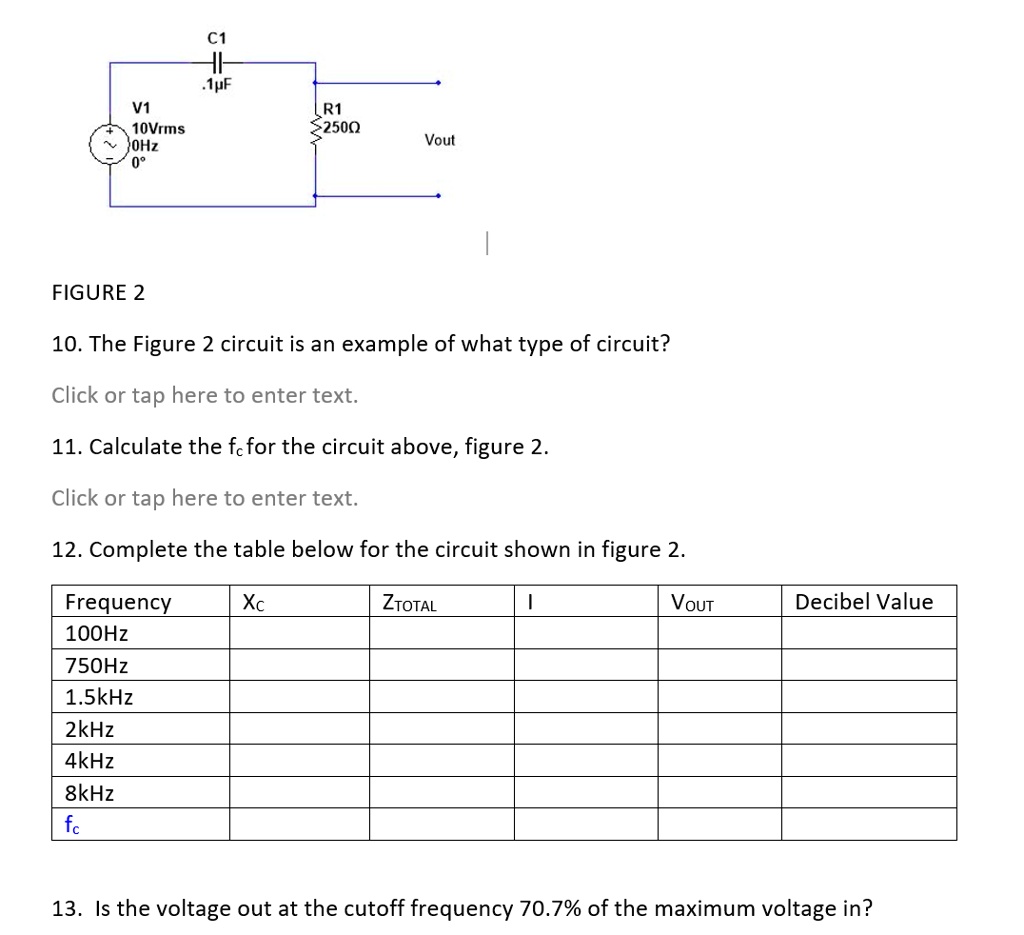

FIGURE 2
10. The Figure 2 circuit is an example of what type of circuit?
Click or tap here to enter text.
11. Calculate the f_(c) for the circuit above, figure 2.
Click or tap here to enter text.
12. Complete the table below for the circuit shown in figure 2.
able[[Frequency, X_(C), Z_(TOTAL), V_(OUT), Decibel Value],[100Hz,,,,,],[750Hz,,,,,],[1.5kHz,,,,,],[2kHz,,,,,],[4kHz,,,,,],[8kHz,,,,,],[f_(c),,,,,]]
Is the voltage out at the cutoff frequency 70.7% of the maximum voltage in?
C1 HI .1F
V1 10Vrms 0Hz
R1 250Ω
Vout
FIGURE 2
10. The Figure 2 circuit is an example of what type of circuit?
Click or tap here to enter text.
11. Calculate the f for the circuit above, figure 2.
Click or tap here to enter text.
12. Complete the table below for the circuit shown in figure 2.
Frequency 100Hz 750Hz 1.5kHz 2kHz 4kHz 8kHz fc
Xc
ZTOTAL
VOuT
Decibel Value
13. Is the voltage out at the cutoff frequency 70.7% of the maximum voltage in?
