4 Lathe Cutting Tools

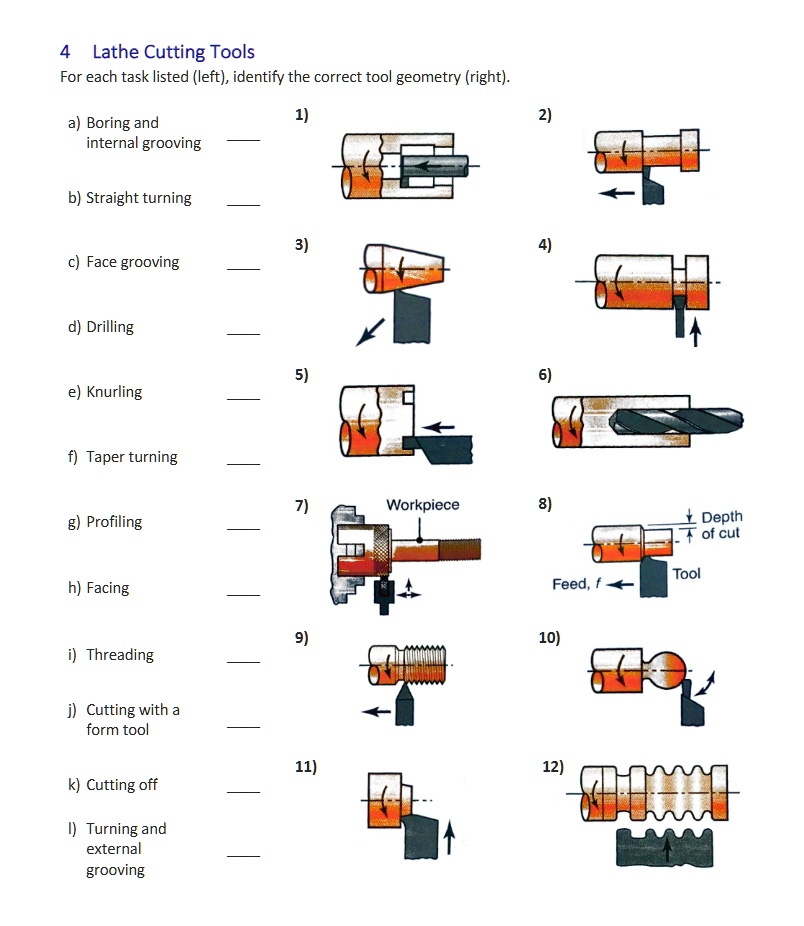

For each task listed (left), identify the correct tool geometry (right).
a) Boring and
internal grooving
b) Straight turning
c) Face grooving
d) Drilling
e) Knurling
f) Taper turning
g) Profiling
h) Facing
i) Threading
j) Cutting with a
form tool
k) Cutting off
l) Turning and
external
grooving
1)
2)
3)
4)
5)
6)
7) Workpiece
8) Depth
of cut
Tool
Feed, f
9)
10)
11)
12)
