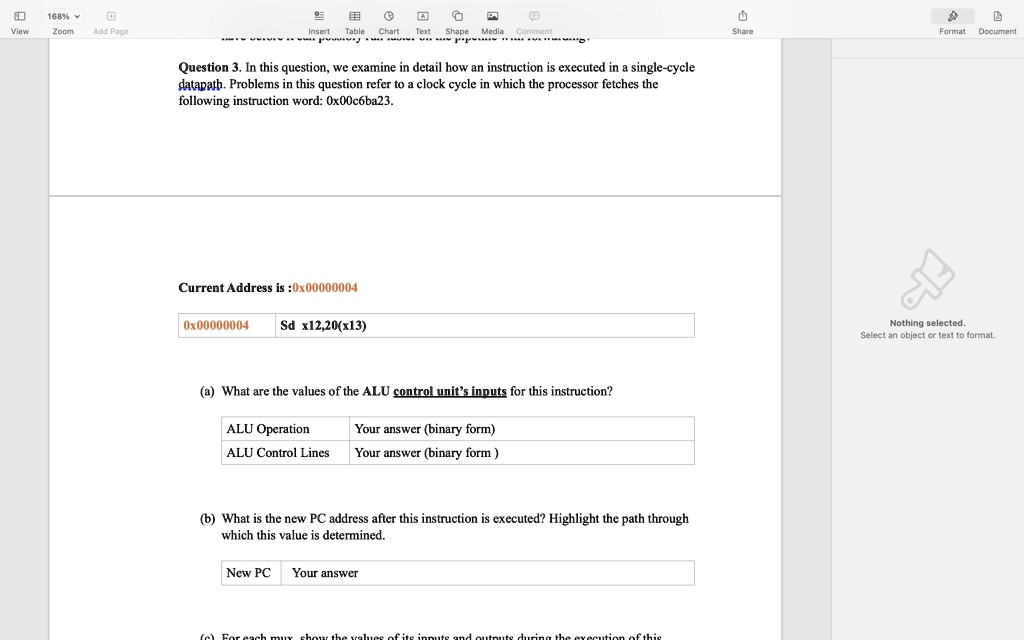

Question 3. In this question, we examine in detail how an instruction is executed in a single-cycle datapath. Problems in this question refer to a clock cycle in which the processor fetches the following instruction word: 0x00c6ba23.
Current Address is : 0x00000004
0x00000004 Sd x12,20(x13)
(a) What are the values of the ALU control unit's inputs for this instruction?
ALU Operation Your answer (binary form)
ALU Control Lines Your answer (binary form)
(b) What is the new PC address after this instruction is executed? Highlight the path through which this value is determined.
New PC Your answer
