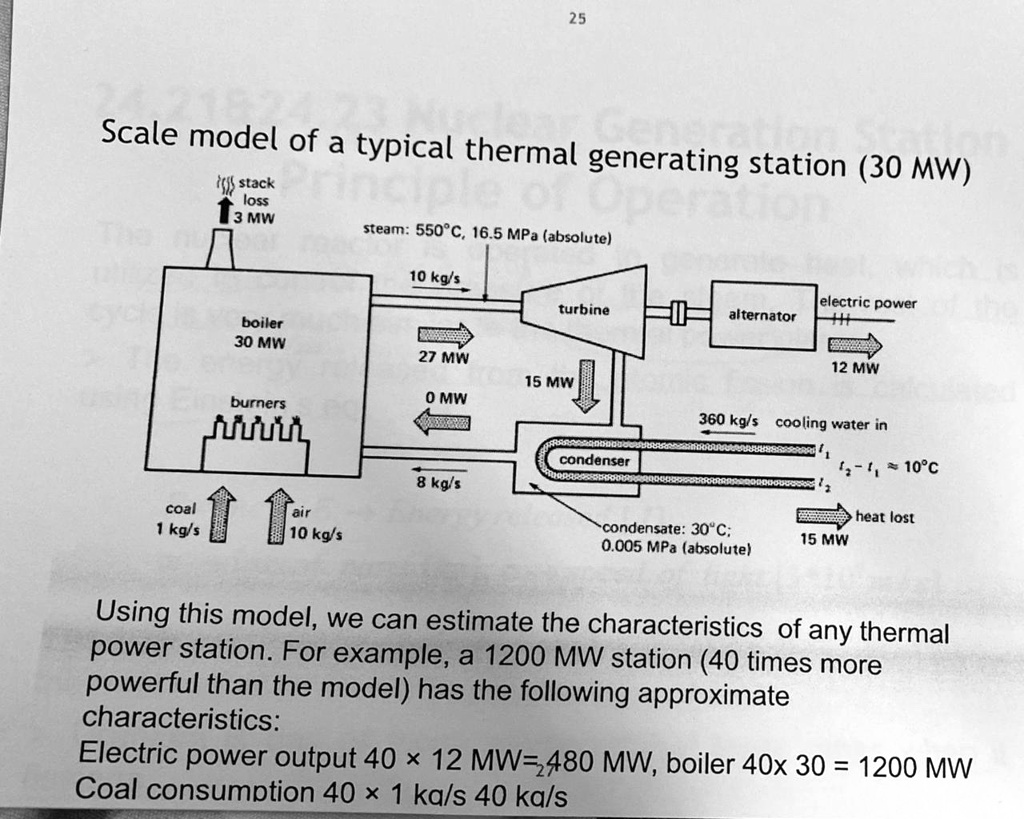

Scale model of a typical thermal generating station (30 MW)
stack
loss
3 MW
steam: 550°C, 16.5 MPa (absolute)
10 kg/s
electric power
turbine
alternator
boiler
30 MW
27 MW
15 MW
0 MW
burners
12 MW
360 kg/s cooling water in
condenser
$t_1 - t_2 \approx 10^\circ C$
8 kg/s
heat lost
10 kg/s
condensate: 30°C;
0.005 MPa (absolute)
15 MW
coal
1 kg/s
air
Using this model, we can estimate the characteristics of any thermal
power station. For example, a 1200 MW station (40 times more
powerful than the model) has the following approximate
characteristics:
Electric power output 40 × 12 MW=480 MW, boiler 40x 30 = 1200 MW
Coal consumption 40 x 1 kg/s 40 kg/s
