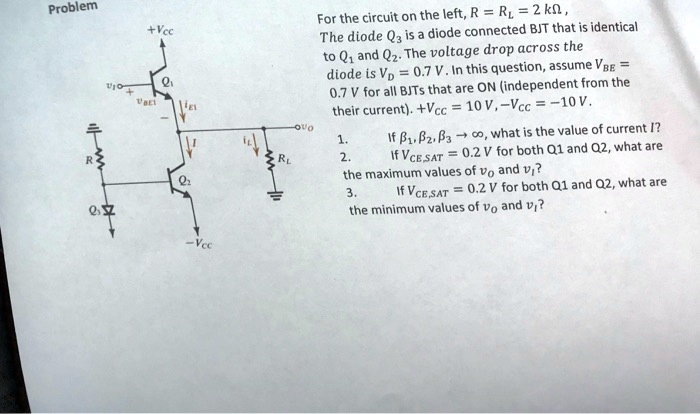

Problem
+Vcc
U
21
+
UBE1
For the circuit on the left, R = R? = 2 k?,
The diode Q3 is a diode connected BJT that is identical
to Q1 and Q2. The voltage drop across the
diode is Vp = 0.7 V. In this question, assume VBE =
0.7 V for all BJTs that are ON (independent from the
their current). +Vcc = 10 V, -Vcc = -10 V.
QUO
1. If $\beta_1, \beta_2, \beta_3 \to \infty$, what is the value of current I?
R
RL
2. If $V_{CE,SAT} = 0.2$ V for both Q1 and Q2, what are
the maximum values of $v_o$ and $v_i$?
22
?
3. If $V_{CE,SAT} = 0.2$ V for both Q1 and Q2, what are
the minimum values of $v_o$ and $v_i$?
-Vcc
