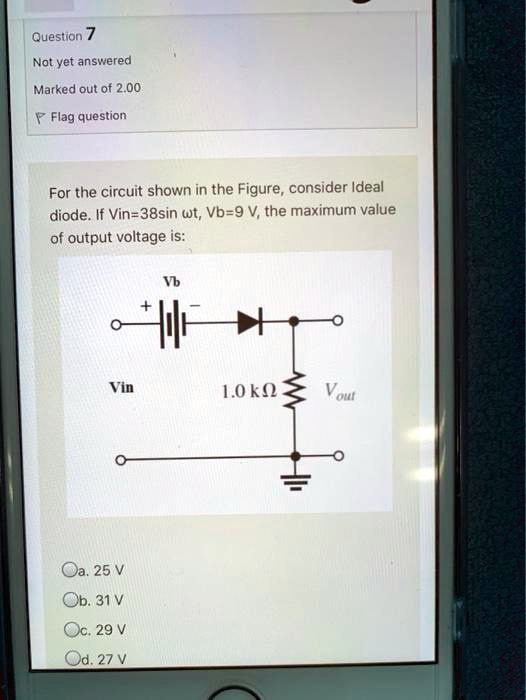

For the circuit shown in the Figure, consider Ideal
diode. If $V_{in} = 38 \sin \omega t$, $V_b = 9 \text{ V}$, the maximum value
of output voltage is:
$V_b$
+
$V_{in}$
1.0 k$\Omega$
$V_{out}$
a. 25 V
b. 31 V
c. 29 V
d. 27 V
