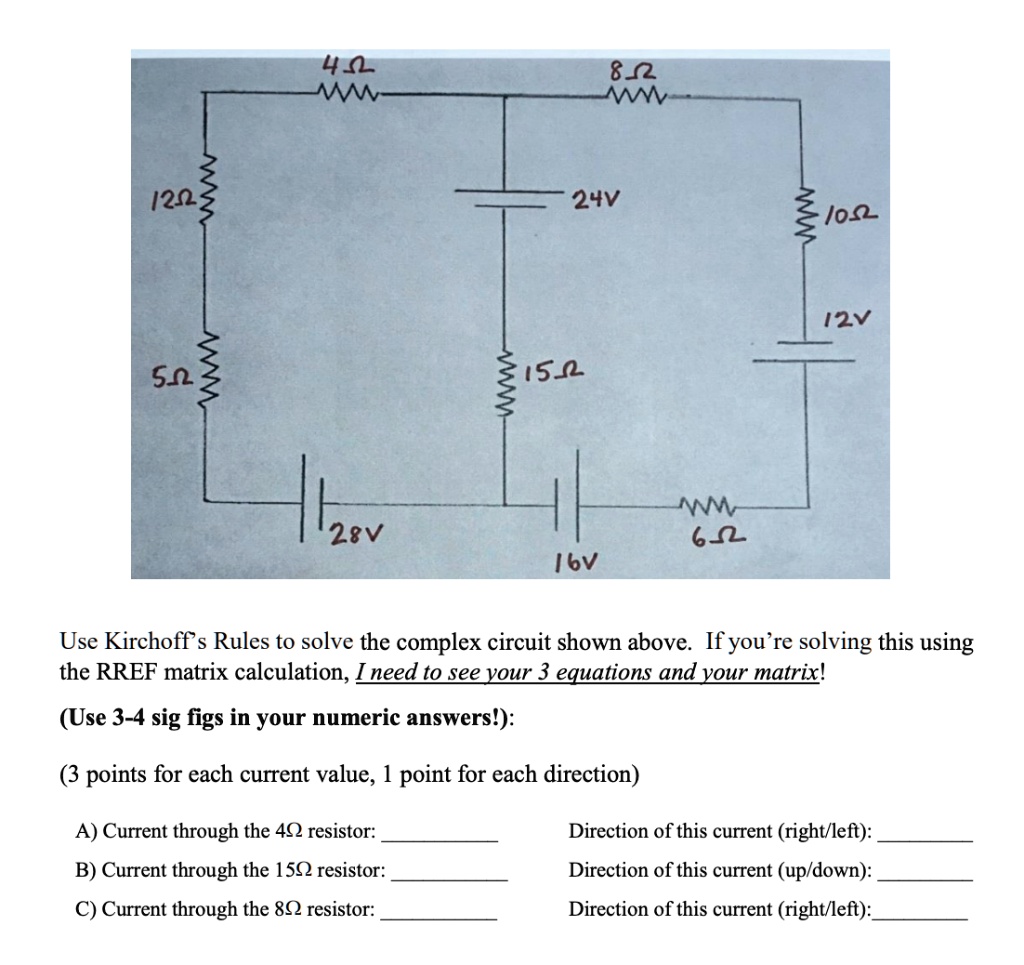

12?
5?
4?
8?
28V
24V
10?
12V
15?
6?
16V
Use Kirchoff's Rules to solve the complex circuit shown above. If you're solving this using
the RREF matrix calculation, I need to see your 3 equations and your matrix!
(Use 3-4 sig figs in your numeric answers!):
(3 points for each current value, 1 point for each direction)
A) Current through the 4? resistor:
B) Current through the 15? resistor:
C) Current through the 8? resistor:
Direction of this current (right/left):
Direction of this current (up/down):
Direction of this current (right/left):
