Keep in mind that the numerical solutions provided after each part have occasionally been known to be incorrect. Ignore part (b) if part (a) is too long. I am not familiar with this type of question, so I will let you judge based on the work required.
4)

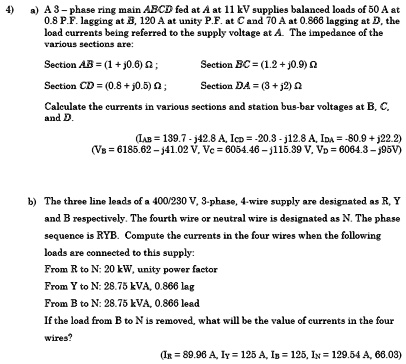

0.8 P.F. lagging at B, 120 A at unity P.F. at C, and 70 A at 0.866 lagging at D, the load currents being referred to the supply voltage at A. The impedance of the various sections are:
Section AB = (1 + j0.6)
Section BC = (1.2 + j0.9)
Section CD = (0.8 + j0.5)
Section DA = (3 + j2)
Calculate the currents in various sections and station bus-bar voltages at B, C, and D. (LA = 139.7 - j42.8 A, Icp = -20.3 - j12.8 A, Ipa = -80.9 + j22.2) (Vs = 6185.62 + j41.02 V, Vc = 6054.46 + j115.39 V, Vp = 6064.3 + j95 V)
