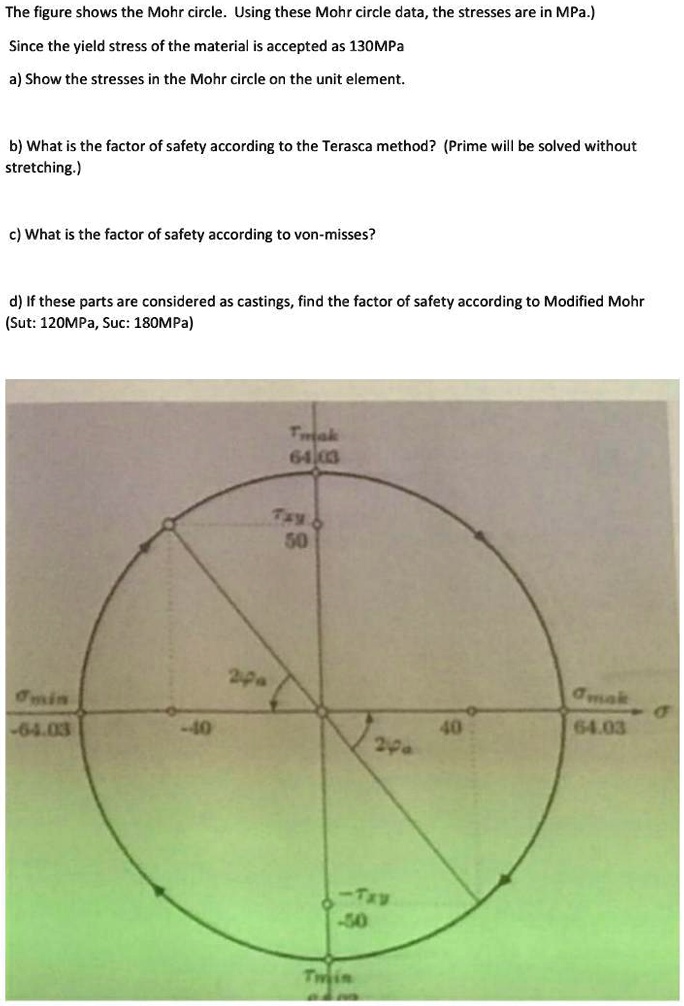

The figure shows the Mohr circle. Using these Mohr circle data, the stresses are in MPa.)
Since the yield stress of the material is accepted as 130MPa
a) Show the stresses in the Mohr circle on the unit element.
b) What is the factor of safety according to the Terasca method? (Prime will be solved without
stretching.)
c) What is the factor of safety according to von-misses?
d) If these parts are considered as castings, find the factor of safety according to Modified Mohr
(Sut: 120MPa, Suc: 180MPa)
