Round your answer to 2 decimal places.
3 marks
Total: 9 marks

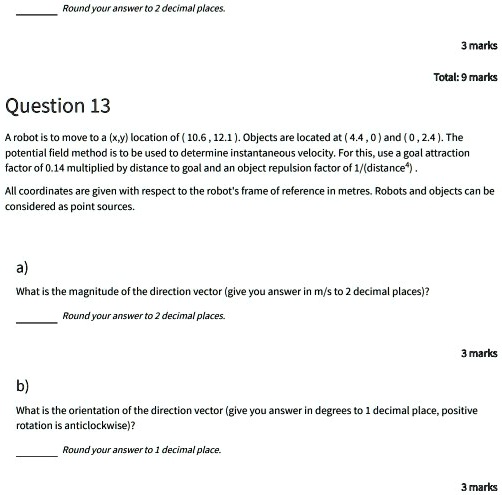

Question 13
A robot is to move to a (x,y) location of (10.6, 12.1). Objects are located at (4.4, 0) and (0, 2.4). The
potential field method is to be used to determine instantaneous velocity. For this, use a goal attraction
factor of 0.14 multiplied by distance to goal and an object repulsion factor of 1/(distance).
All coordinates are given with respect to the robot's frame of reference in metres. Robots and objects can be
considered as point sources.
a)
What is the magnitude of the direction vector (give you answer in m/s to 2 decimal places)?
Round your answer to 2 decimal places.
3 marks
b)
What is the orientation of the direction vector (give you answer in degrees to 1 decimal place, positive
rotation is anticlockwise)?
Round your answer to 1 decimal place.
3 marks
