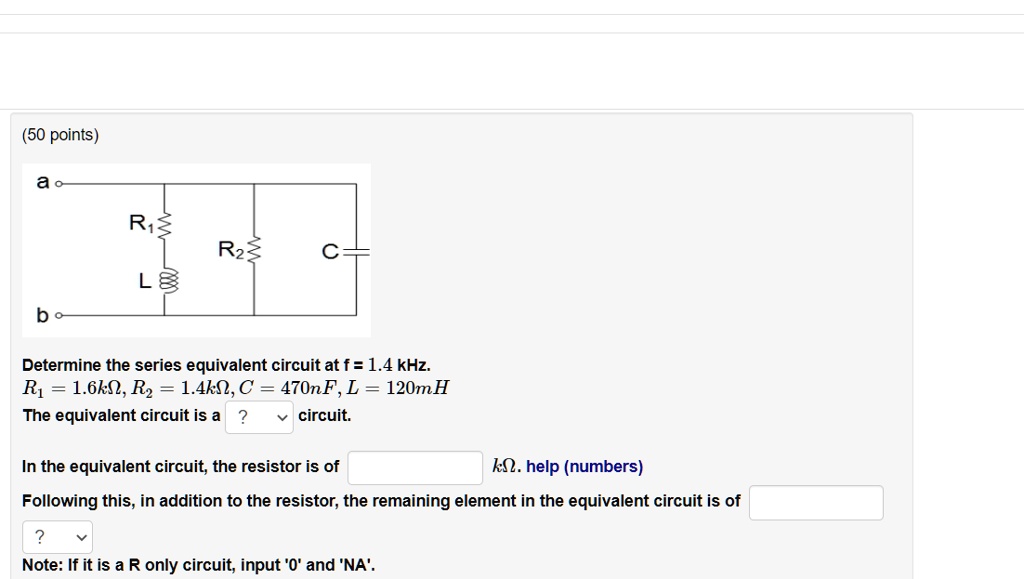

(50 points)
ao
R1
R2
C
L
bo
Determine the series equivalent circuit at f = 1.4 kHz.
$R_1$ = 1.6k$\Omega$, $R_2$ = 1.4k$\Omega$, C = 470nF, L = 120mH
The equivalent circuit is a ? \(\checkmark\) circuit.
In the equivalent circuit, the resistor is of
k$\Omega$. help (numbers)
Following this, in addition to the resistor, the remaining element in the equivalent circuit is of
?
Note: If it is a R only circuit, input '0' and 'NA'.
