Experiment Design 3:
+
12V
V2
12V
+
-12V
V3
12V
+
V4
-10V
SW1
+
V1
0.25
R1
0.5k
OFF ON
6
1
5
2
4
3
DIPSW_3
X
Fig. 1
Circuit
12V
U1:A
Vo
3
+
1
2
LM324
-12V
1
R4
8k
y

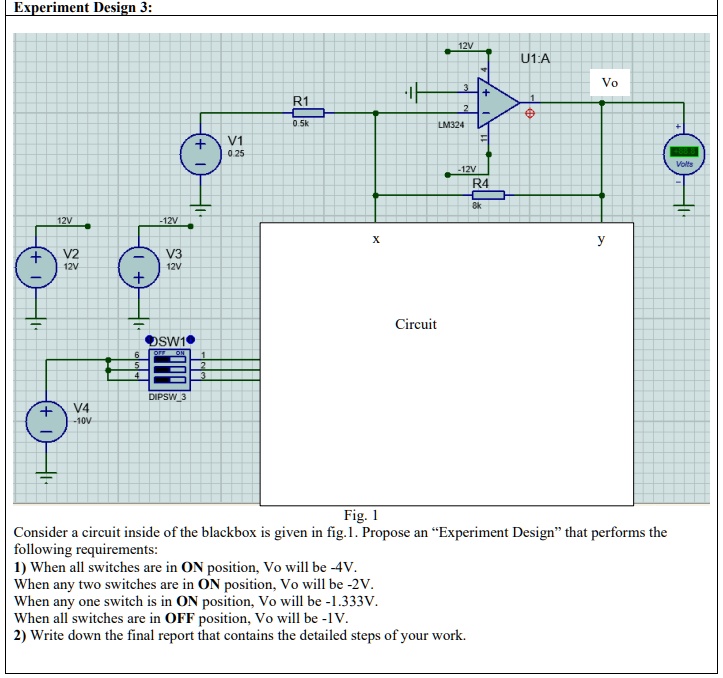

Consider a circuit inside of the blackbox is given in fig. 1. Propose an "Experiment Design" that performs the
following requirements:
1) When all switches are in ON position, Vo will be -4V.
When any two switches are in ON position, Vo will be -2V.
When any one switch is in ON position, Vo will be -1.333V.
When all switches are in OFF position, Vo will be -1V.
2) Write down the final report that contains the detailed steps of your work.
