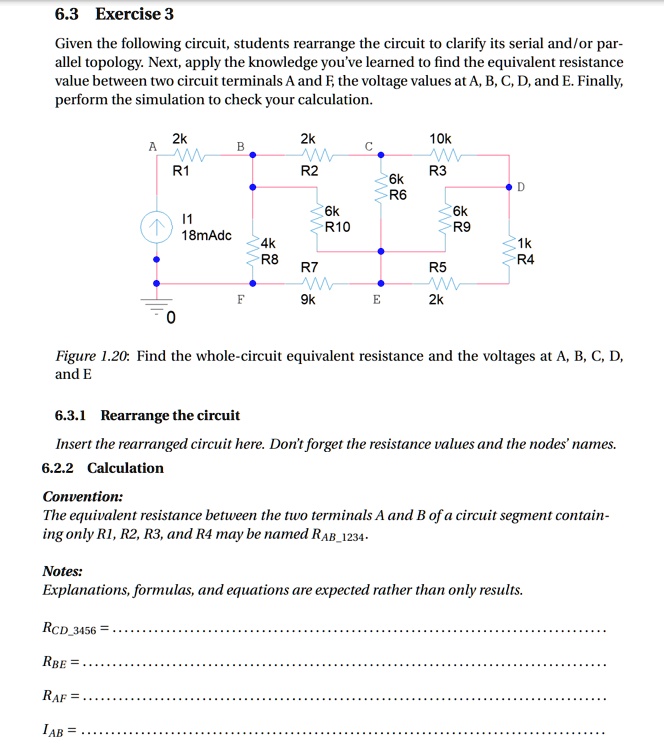

6.3 Exercise 3
Given the following circuit, students rearrange the circuit to clarify its serial and/or parallel topology. Next, apply the knowledge you've learned to find the equivalent resistance value between two circuit terminals A and F, the voltage values at A, B, C, D, and E. Finally, perform the simulation to check your calculation.
2k
2k
10k
A
B
C
R1
R2
R3
6k
D
R6
6k
6k
↑
11
18mAdc
R10
R9
4k
R8
1k
R4
R7
R5
M
F
9k
E
2k
0
Figure 1.20. Find the whole-circuit equivalent resistance and the voltages at A, B, C, D,
and E
6.3.1 Rearrange the circuit
Insert the rearranged circuit here. Don't forget the resistance values and the nodes' names.
6.2.2 Calculation
Convention:
The equivalent resistance between the two terminals A and B of a circuit segment containing only R1, R2, R3, and R4 may be named RAB_1234-
Notes:
Explanations, formulas, and equations are expected rather than only results.
RCD_3456 =
RBE =
RAF =
IAB =
