Internal forces in a point

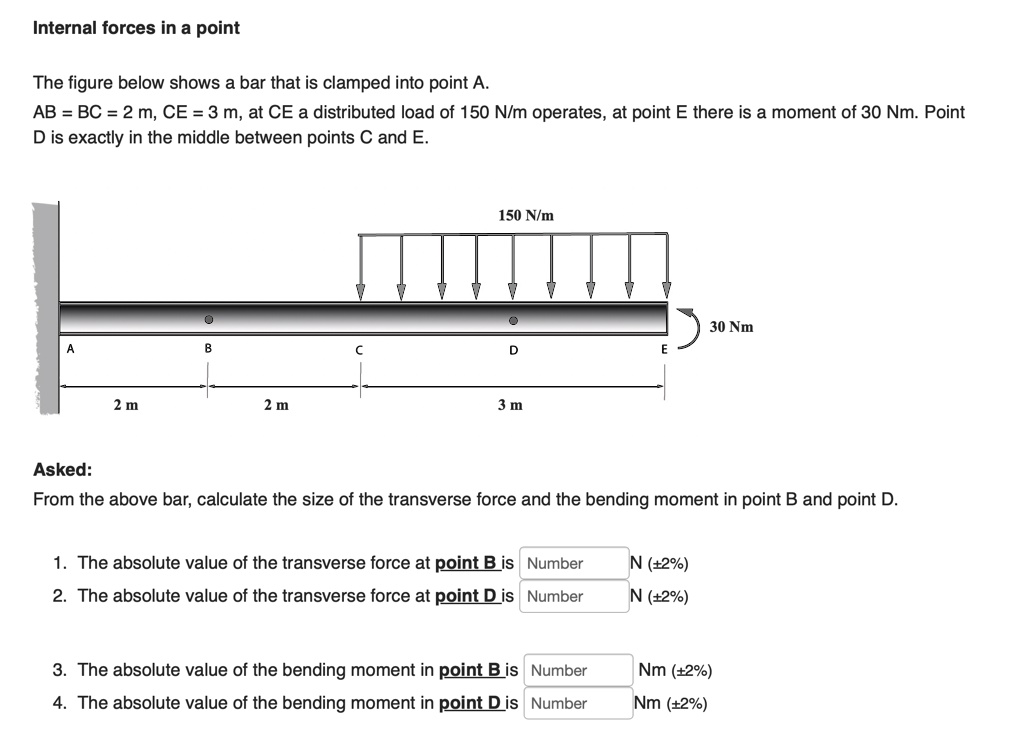

The figure below shows a bar that is clamped into point A.
AB = BC = 2 m, CE = 3 m, at CE a distributed load of 150 N/m operates, at point E there is a moment of 30 Nm. Point D is exactly in the middle between points C and E.
Asked:
From the above bar, calculate the size of the transverse force and the bending moment in point B and point D.
1. The absolute value of the transverse force at point B is Number N (±2%)
2. The absolute value of the transverse force at point D is Number N (±2%)
3. The absolute value of the bending moment in point B is Number Nm (±2%)
4. The absolute value of the bending moment in point D is Number Nm (±2%)
