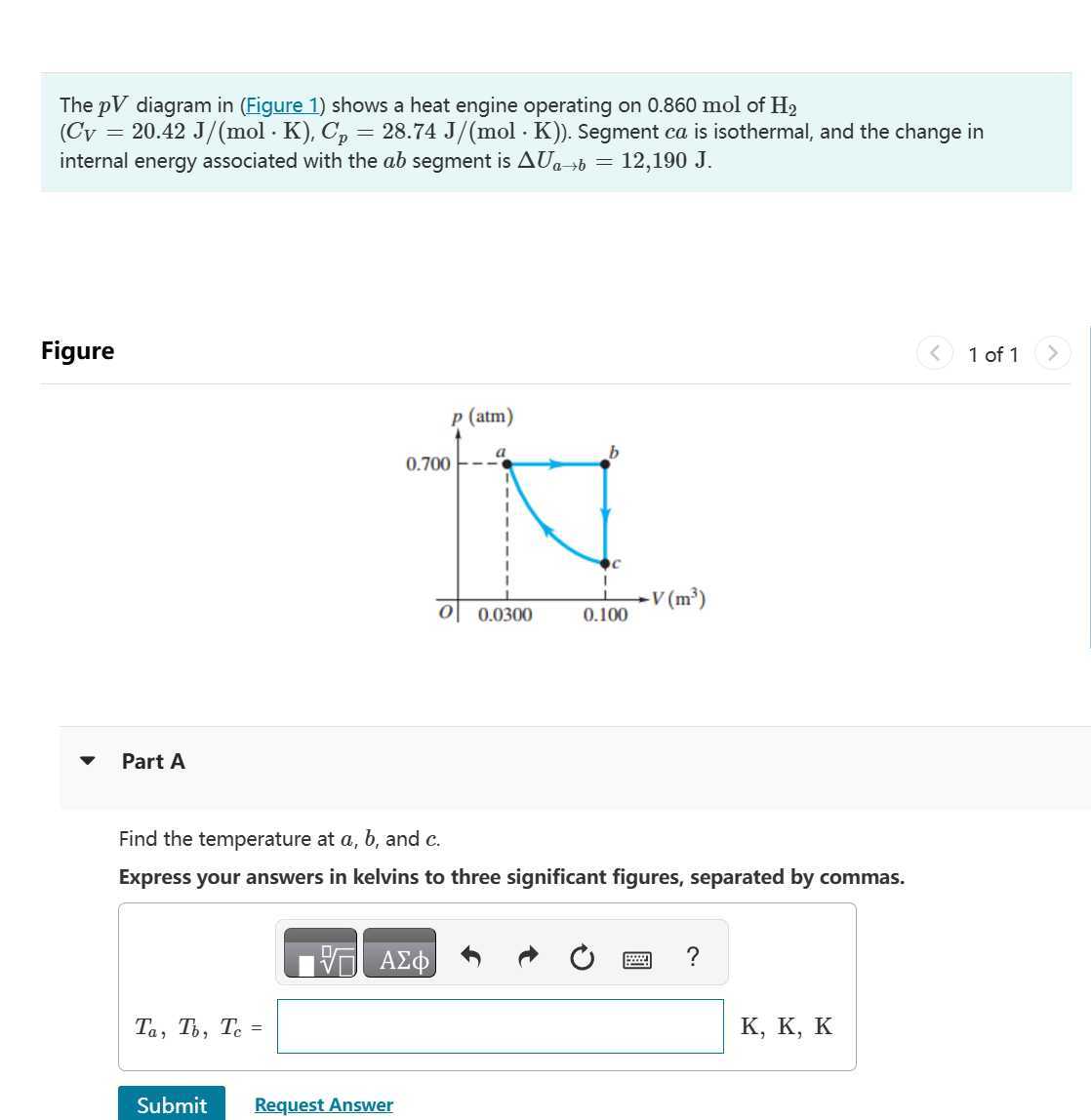

The \( p V \) diagram in (Figure 1) shows a heat engine operating on 0.860 mol of \( \mathrm{H}_{2} \) \( \left(C_{V}=20.42 \mathrm{~J} /(\mathrm{mol} \cdot \mathrm{K}), C_{p}=28.74 \mathrm{~J} /(\mathrm{mol} \cdot \mathrm{K})\right) \). Segment \( c a \) is isothermal, and the change in internal energy associated with the \( a b \) segment is \( \Delta U_{a \rightarrow b}=12,190 \mathrm{~J} \).
Figure
1 of 1
Part A
Find the temperature at \( a, b \), and \( c \).
Express your answers in kelvins to three significant figures, separated by commas.
\( \square \)
Submit
Request Answer
